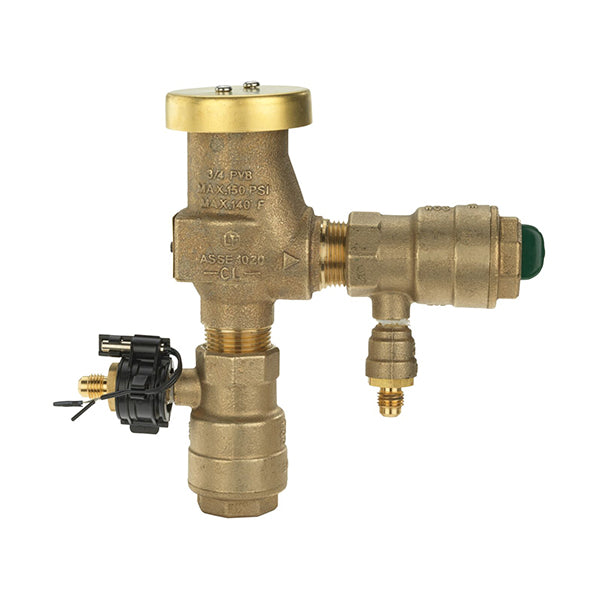

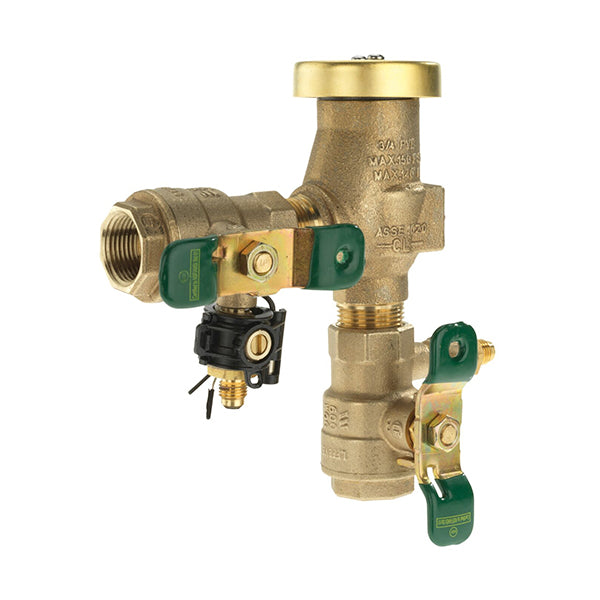

3/4 in Anti-Siphon Pressure Vacuum Breaker
WATS 0388001 800M4QT3/4 3/4 800M4QT VAC BRKR
PDIPN:
123809
Key Features
Regular price
$324.65
Sale price
$324.65
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This check valve assembly prevents the backsiphonage of contaminated water into a potable water supply system. Engineered for continuous pressure piping applications, it is suitable for irrigation systems and industrial process water setups where water enters equipment at or below the flood rim. The unit features a replaceable plastic seat and an acetal bonnet designed to function as a freeze plug, which helps protect the main body from damage in sub-freezing conditions. It utilizes NPT connections and is rated for operation up to a maximum pressure of 150 psi and temperatures reaching 140 degrees.
Specifications
Specifications
Dimensions and Measurements
- Inlet Diameter (in) 3/4 in
- Water Connection Size (in) 3/4 in
- Pressure Rating (PSI) 150 PSI
- Temperature Rating (deg) 140 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type NPT
Material
- Material Bronze
