WATS 0556016 LF40XL-1502103/4 3/4 LF T&P RLF VLV
WATS 0556016 LF40XL-1502103/4 3/4 LF T&P RLF VLV
PDIPN:
99737
Key Features
Regular price
$382.48
Sale price
$382.48
Regular price
Overview
Overview

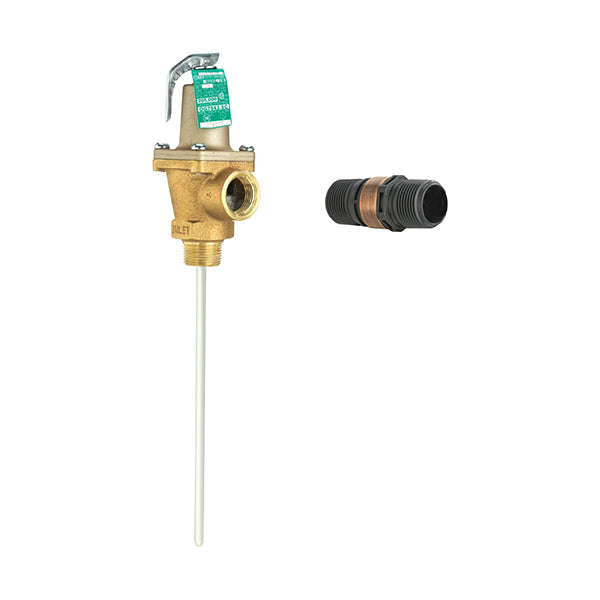

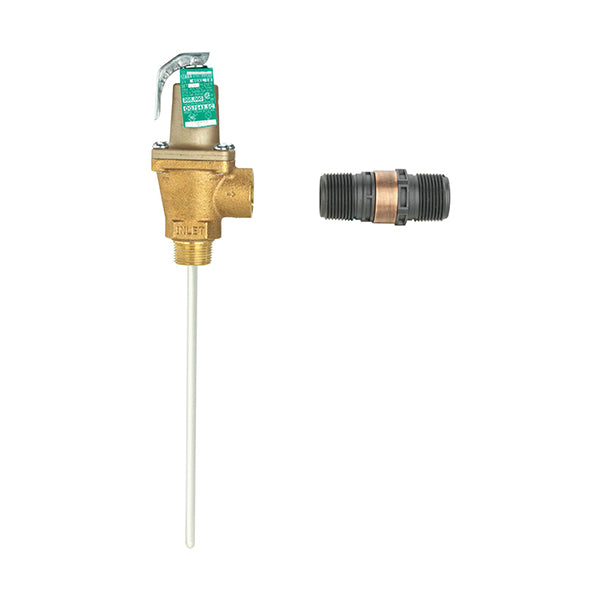

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This Lead Free Automatic Reseating Temperature and Pressure Relief Valve has a 3/4 in NPTF male inlet, 3/4 in NPTF female outlet, 5 in coated extension thermostat, pressure relief setpoint of 150 PSI, and temperature relief setpoint of 210 degrees F. The valve can be installed in hot water outlet within the allowable distance from the top of the tank for commercial applications to provide protection for hot water supply tanks and hot water heaters. It features a lead free copper silicon alloy body, tamper resistant bonnet screws, and test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
- BTU Rating (BTU/hr) 1437600 BTU/hr
- Pressure Rating (PSI) 112 PSI
- Pressure Set Point (PSI) 150 PSI
- Temperature Rating (deg) 210 deg F
Number Of
- Quantity (Count) 1
Material
- Material Copper Silicon Alloy
