LR Series 36 GPM Circulating Pump, Red
LR Series 36 GPM Circulating Pump, Red
PDIPN:
71504
Key Features
Regular price
$657.00
Sale price
$657.00
Regular price
Overview
Overview

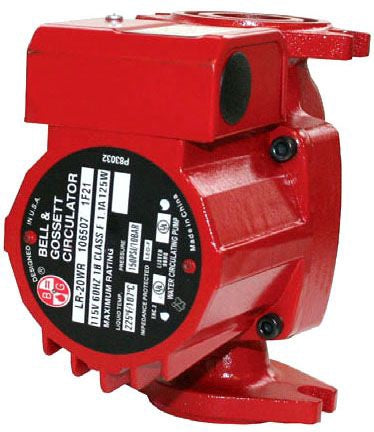

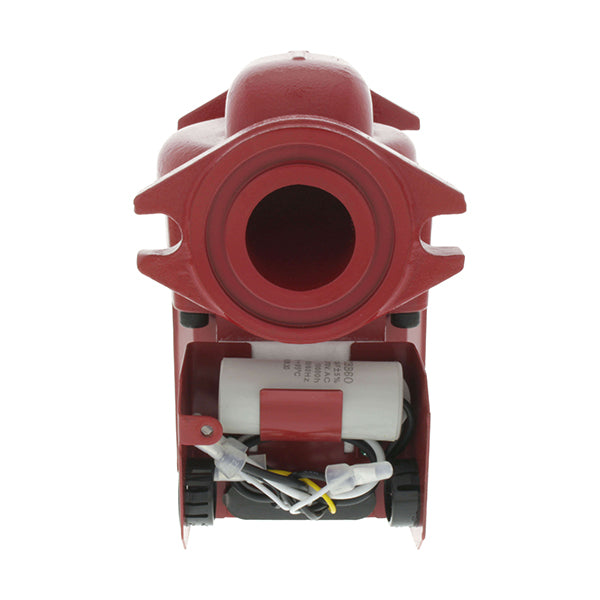

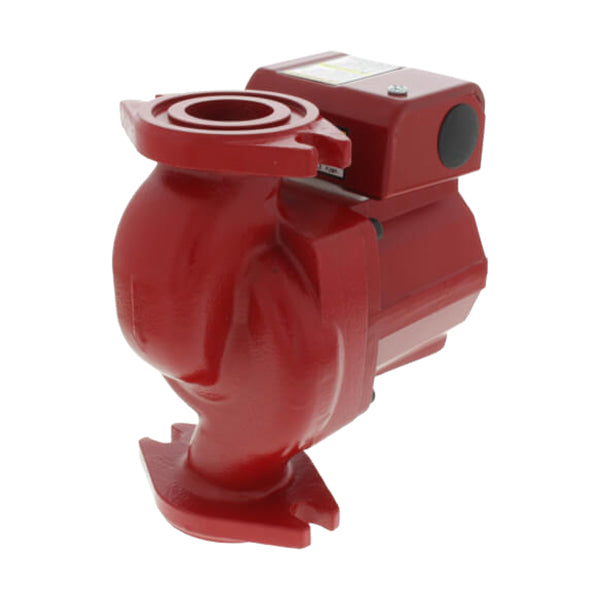

SPECIAL ORDER ITEM. Review Returns Policy before purchase. Bell & Gossett Series LR-20WR Circulating Pump. The Bell & Gossett Little Red Pump series LR is a flanged in-line system lubricated circulating pump designed specifically for quiet operation in closed loop systems.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
- Water Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
Characteristics and Features
- Manufacturer Warranty Refer warranty as per manufacturer website
Number Of
- Number of Speeds 1
Material
- Material Cast Iron
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 2950 rpm
- Flow Rate (gpm) 36 gpm
- Head Range (ft) 12 ft
- Horsepower (HP) 1/20 hp
- Temperature Rating (deg) 225 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 1.1 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 125 W
