Vacuum Breaker

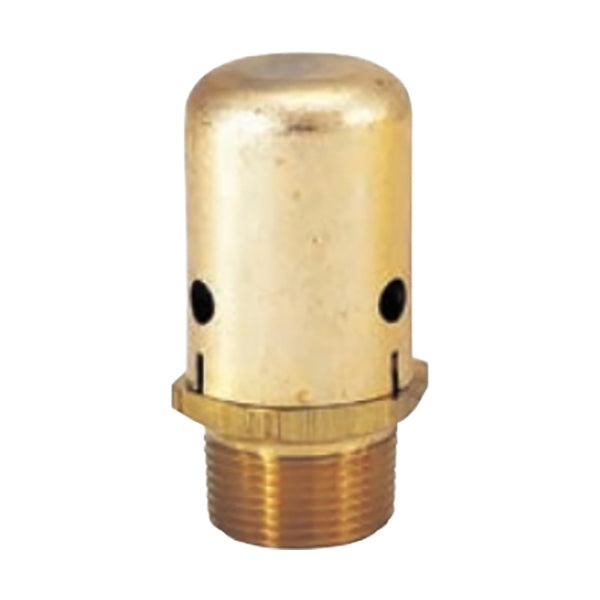

B&G 113075 26 VACUUM BREAKER
PDIPN:
104830
Key Features
Regular price
$140.00
Sale price
$140.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Designed to protect closed vessels and piping systems against collapse when the induced vacuum exceeds design conditions. When used on steam heating systems, the No. 26 Vacuum Breaker controls induced vacuum, permitting normal return of condensate to the boiler. Adjustable range 1/4 in to 20 in mercury vacuum. Factory set to 4 in
Specifications
Specifications
Dimensions and Measurements
- Inlet Diameter (in) 3/4 in
- Thread Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
- Pressure Rating (PSI) 150 PSI
- Temperature Rating (deg) 250 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type NPT
Material
- Material Brass
