34GASI 3/4 IPS IMPORT GAS COCK VALVE (10/100)
34GASI 3/4 IPS IMPORT GAS COCK VALVE (10/100)
PDIPN:
7754
Key Features
Regular price
$10.54
Sale price
$10.54
Regular price
Overview
Overview

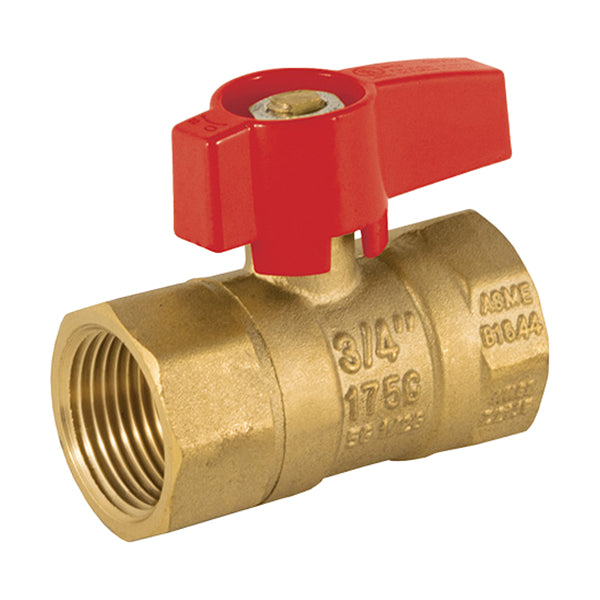

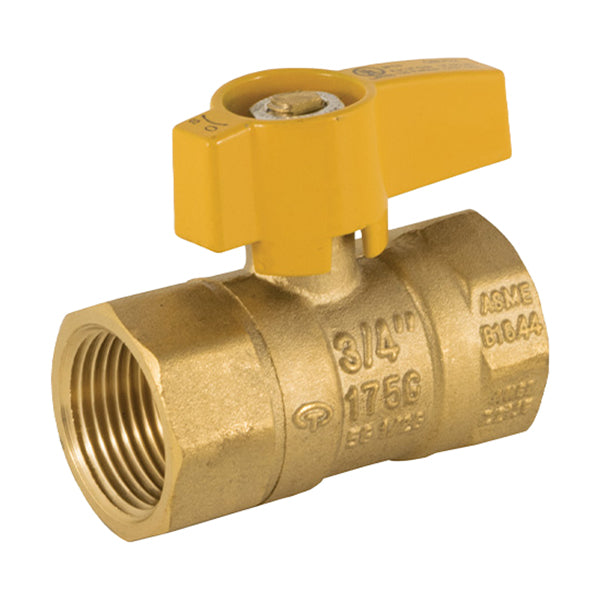

Engineered for gas line applications, this 3/4 in IPS standard port ball valve features a 2-piece brass construction. It is rated for a maximum pressure of 175 psi and operates within a temperature range of -20 to 300 degrees Fahrenheit. The threaded connection ensures a secure fit for plumbing systems. Designed with a locking handle, this valve provides the ability to secure the flow in either the open or closed position by reversing the handle orientation. The assembly incorporates a gland follower and a single O-ring stem design to maintain seal integrity. Each unit is 100 percent leak tested to verify performance standards.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 300 deg
Characteristics and Features
- Port Type Standard Port
- Plumbing Connection Type NPT
- Valve Handle Type Locking
Number Of
- Quantity (Count) 1
Material
- Material Brass
