WILKINS 10-375A 10IN LF PRINCIPLE ASY
WILKINS 10-375A 10IN LF PRINCIPLE ASY
PDIPN:
200933
Key Features
Regular price
$24,750.00
Sale price
$24,750.00
Regular price
Overview
Overview

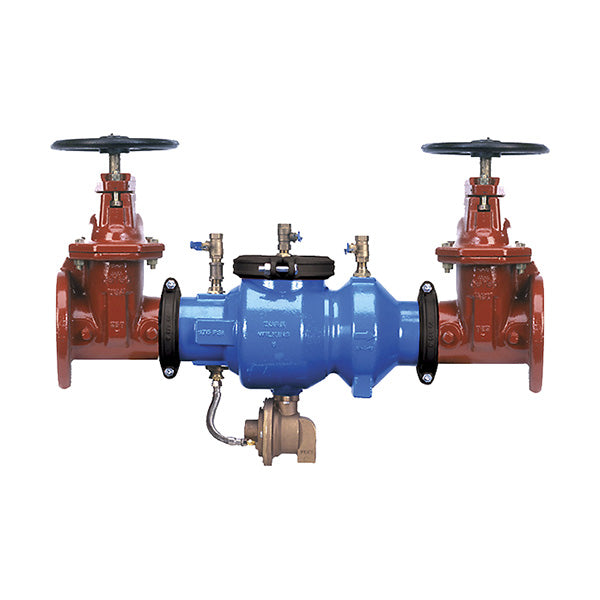

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This reduced pressure principle backflow prevention assembly is engineered for installation on potable water lines to safeguard against both backsiphonage and backpressure of contaminated water into the supply. Rated for a maximum pressure of 175 psi and temperatures up to 140 degrees, the unit features a check valve assembly compatible with gate and butterfly valve configurations. The design allows for the checks and the relief valve to be accessed for maintenance without requiring the device to be removed from the line, ensuring efficient serviceability in commercial and industrial plumbing systems.
Specifications
Specifications
Dimensions and Measurements
- Inlet Diameter (in) 6 in
- Water Connection Size (in) 6 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 140 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type Flanged
Material
- Material Ductile Iron
