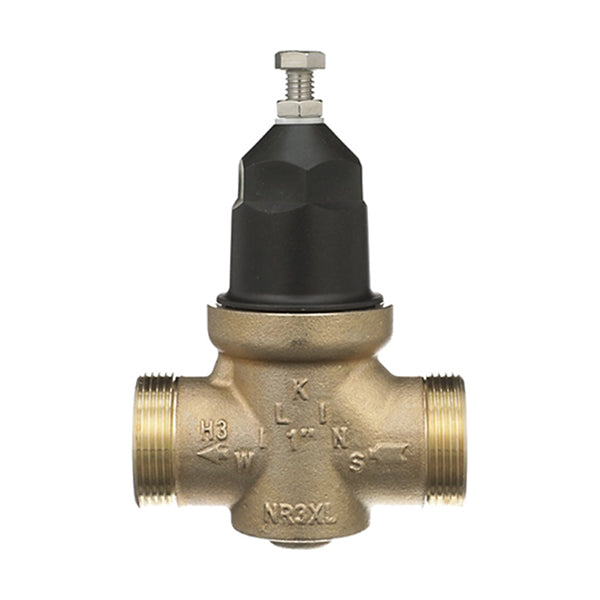

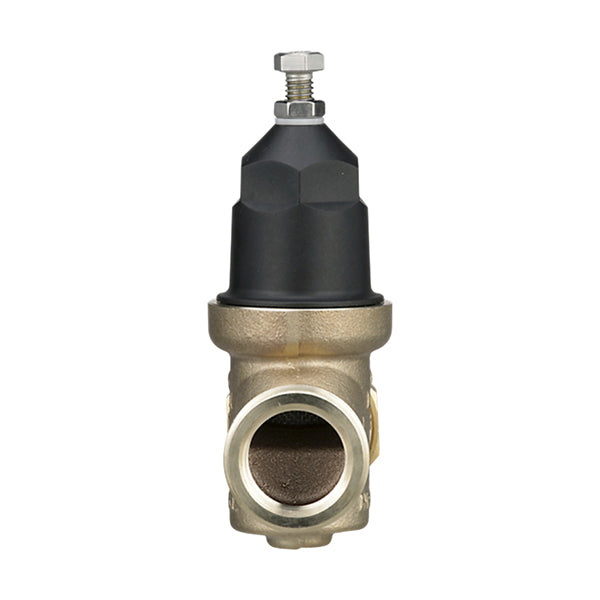

NR3XL Series Lead-Free Pressure Reducing Valve
WILKINS 114-NR3XLC LF PRDV
PDIPN:
19899
Key Features
Regular price
$638.00
Sale price
$638.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Pressure Reducing Valve is designed for residential and commercial applications to control high inlet water pressure and maintain a lower, stable outlet pressure. Intended for installation on potable water lines, it helps protect plumbing systems and fixtures from excessive pressure. The valve features a union inlet connection for easier installation, an integral stainless steel strainer to capture debris, and a high-temperature resistant reinforced diaphragm suitable for hot water applications. Its balanced piston design allows the regulator to respond smoothly to changes in system flow demand while protecting the system from inlet pressure fluctuations.
Specifications
Specifications
Dimensions and Measurements
- Fitting Size (in) 1-1/4 in
- Inlet Diameter (in) 1-1/4 in
- Outlet Diameter (in) 1-1/4 in
- Valve Size (in) 1-1/4 in
- Pressure Rating (PSI) 400 PSI
- Temperature Rating (deg) 140 deg
Characteristics and Features
- Plumbing Connection Type NPT
Number Of
- Quantity (Count) 1
Material
- Material Cast Bronze
