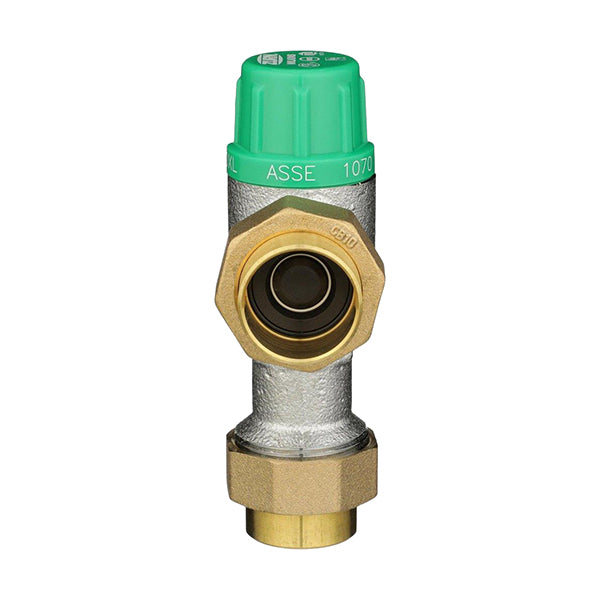

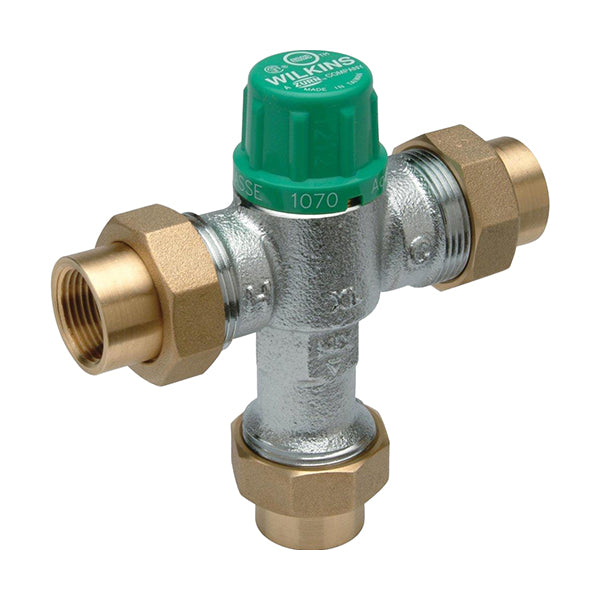

WILKINS 12-ZW1070XL LF THMST MXG VLV
WILKINS 12-ZW1070XL LF THMST MXG VLV
PDIPN:
17570
Key Features
Regular price
$168.00
Sale price
$168.00
Regular price
Overview
Overview
The aqua-gard thermostatic mixing valve is designed for point-of-use installations to deliver safe, controlled water temperatures at plumbing fixtures. It blends hot and cold water from the supply system to maintain a consistent outlet temperature, helping reduce the risk of scalding. The valve features a durable cast bronze body with corrosion-resistant internal components for dependable performance in residential and light commercial applications. With a rapid-response thermostatic element and a flow capacity of up to 10 GPM, it helps maintain stable outlet temperatures between 95 deg F and 115 deg F. The compact design and threaded connections support straightforward installation on sinks, lavatories, or bathtubs.
Specifications
Specifications
Dimensions and Measurements
- Fitting Size (in) 1/2 in
- Inlet Diameter (in) 1/2 in
- Outlet Diameter (in) 1/2 in
- Valve Size (in) 1/2 in
- Pressure Rating (PSI) 145 PSI
- Temperature Rating (deg) 195 deg
Characteristics and Features
- Plumbing Connection Type NPT
Number Of
- Quantity (Count) 1
Material
- Material Cast Bronze
