WILKINS 12UFX12F-700XL LF DU CKV
WILKINS 12UFX12F-700XL LF DU CKV
PDIPN:
19916
Key Features
Regular price
$104.99
Sale price
$104.99
Regular price
Overview
Overview

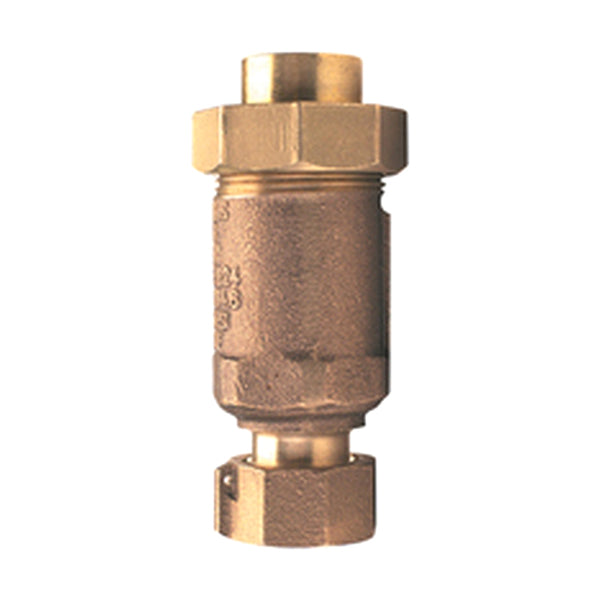

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This dual check valve assembly provides backflow prevention for low hazard potable water systems. Engineered for consistent flow control, the unit is rated for a maximum pressure of 175 psi and can withstand operating temperatures up to 180 degrees. The assembly features a female NPT union inlet and a female NPT outlet, facilitating secure connections in both residential and commercial plumbing infrastructures. Designed for versatility, this non-testable device supports both horizontal and vertical installation orientations to accommodate various piping configurations. It serves as a critical component for maintaining water system integrity and protecting supply lines from backflow in diverse plumbing applications.
Specifications
Specifications
Dimensions and Measurements
- Inlet Diameter (in) 1/2 in
- Thread Size (in) 1/2 in
- Water Connection Size (in) 1/2 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 180 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type NPT
Material
- Material Cast Bronze
