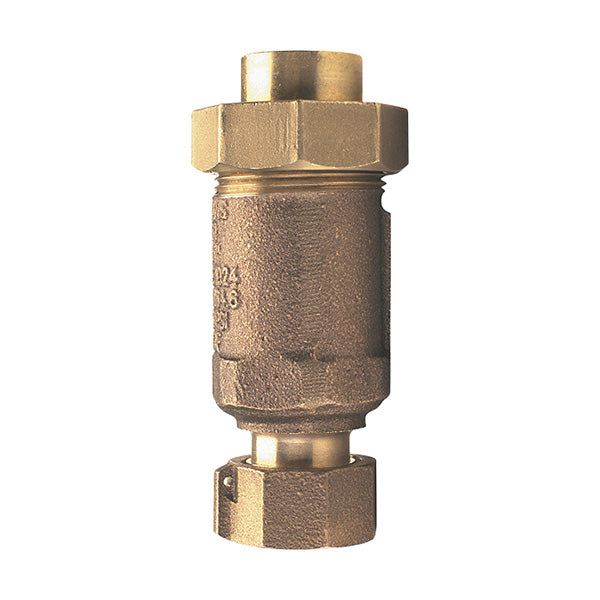

3/8 in Dual Check Valve Backflow Preventer, FIP
WILKINS 34UFX1F-700XL LF CBZ BFP
PDIPN:
248823
Key Features
Regular price
$66.00
Sale price
$66.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This dual check valve backflow preventer assembly is engineered for installation on potable water lines to protect against both backsiphonage and backpressure of polluted water into the supply. Certified to NSF/ANSI/CAN 61 and ASSE 1024 standards, the unit features a low lead cast bronze body constructed to ASTM- B 584 specifications. The internal check assemblies utilize NORYL or DELRIN components paired with Buna Nitrile seal rings and o-rings to ensure reliable operation. Rated for a maximum pressure of 175 psi and temperatures up to 180 degrees, this assembly provides essential protection in systems where a potential health hazard does not exist.
Specifications
Specifications
Dimensions and Measurements
- Inlet Diameter (in) 3/8 in
- Water Connection Size (in) 3/8 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 180 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type FIP
