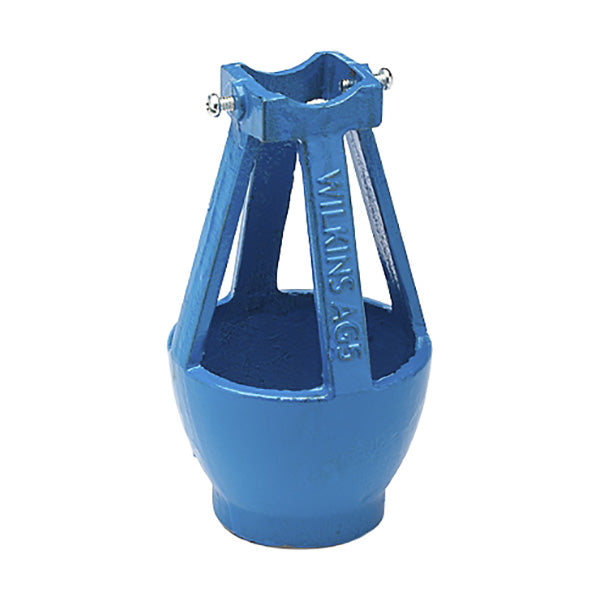

WILKINS AG-5 AIR GAP
WILKINS AG-5 AIR GAP
PDIPN:
40208
Key Features
Regular price
$274.00
Sale price
$274.00
Regular price
Overview
Overview
Engineered for integration with reduced pressure principle backflow preventers, this air gap fitting facilitates the connection of a drain line to the assembly. The component supports both horizontal and vertical installation orientations, allowing for versatile mounting directly to the valve body. By providing a physical separation between the relief valve and the drainage system, it ensures proper atmospheric venting during discharge. This fitting utilizes NPT connections to accommodate standard piping materials for reliable drainage management in backflow prevention systems.
Specifications
Specifications
Dimensions and Measurements
- Inlet Diameter (in) 2 in
- Water Connection Size (in) 2 in
- Temperature Rating (deg) 180 deg
Characteristics and Features
- Backflow Preventers and Parts Type Air Intel Valve
- Plumbing Connection Type NPT
Material
- Material Cast Iron
