WILKINS ZW5004G 2-1/2 VLV
WILKINS ZW5004G 2-1/2 VLV
PDIPN:
201707
Key Features
Regular price
$4,877.04
Sale price
$4,877.04
Regular price
Overview
Overview

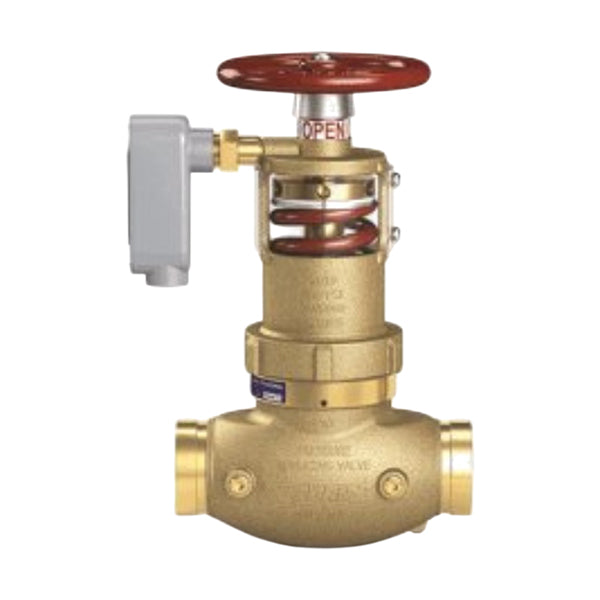

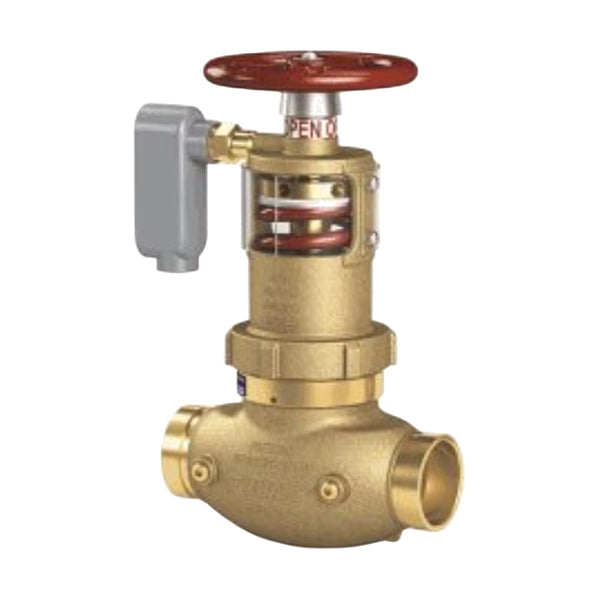

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This Pressure Reducing Valve floor control valve is designed for fire protection and standpipe systems. It regulates downstream pressure during both flow and no-flow conditions to maintain consistent water delivery. The compact design allows installation in limited spaces, while the low-torque adjustment mechanism enables easy field pressure tuning. Integrated supervisory components and gauge tapping points support monitoring and maintenance, helping ensure reliable system performance in demanding sprinkler and standpipe installations.
Specifications
Specifications
Dimensions and Measurements
- Fitting Size (in) 2-1/2 in
- Inlet Diameter (in) 2-1/2 in
- Outlet Diameter (in) 2-1/2 in
- Valve Size (in) 2-1/2 in
- Pressure Rating (PSI) 400 PSI
Characteristics and Features
- Plumbing Connection Type Grooved
Number Of
- Quantity (Count) 1
Material
- Material Cast Bronze
