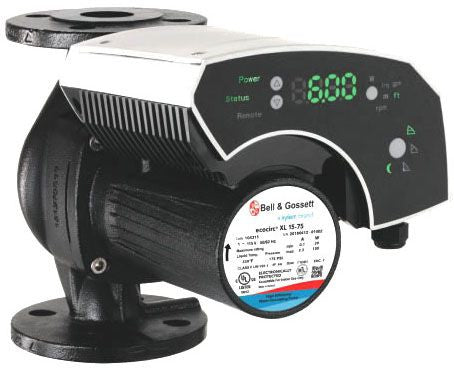

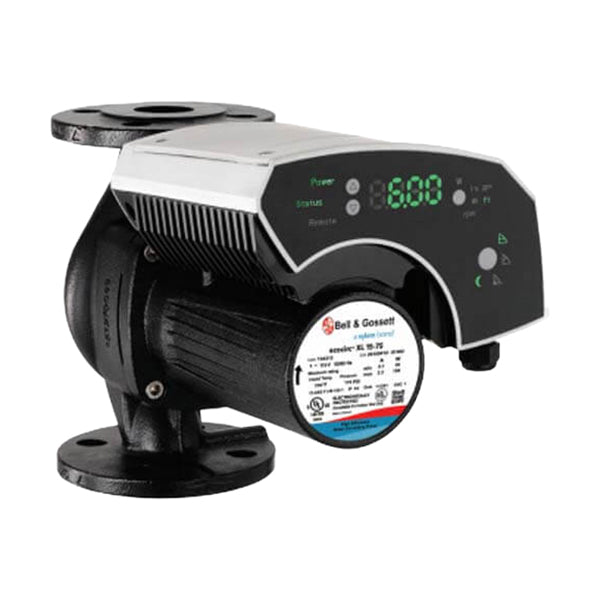

45 GPM Wet Rotor Flanged
45 GPM Wet Rotor Flanged
PDIPN:
67408
Key Features
Regular price
$6,091.00
Sale price
$6,091.00
Regular price
Shipping calculated at checkout.
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. The newly expanded Ecocirc XL line, with single and three phase motor options, gives you a highly efficient circulator that enhances commercial hydronic systems with superior quality and dependability. State-of-the-art hydraulics, advanced motor design, intelligent controls and smart communication make the Ecocirc single phase and three phase ideal for a broad range of HVAC and plumbing applications.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
- Water Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
Characteristics and Features
- Manufacturer Warranty Refer warranty as per manufacturer website
Number Of
- Number of Speeds 1
Material
- Material Cast Iron
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 1500 to 4500 rpm
- Flow Rate (gpm) 45 gpm
- Head Range (ft) 55 ft
- Horsepower (HP) 1/2 hp
- Temperature Rating (deg) 104 deg F Ambient, 230 deg F Liquid
Electrical Information
- Frequency Rating (Hz) 50/60 Hz
- Amperage (A) 0.2 to 2 A
- Voltage (V) 208 - 230V
Operation Detail
- Power Rating (W) 372.85 W
