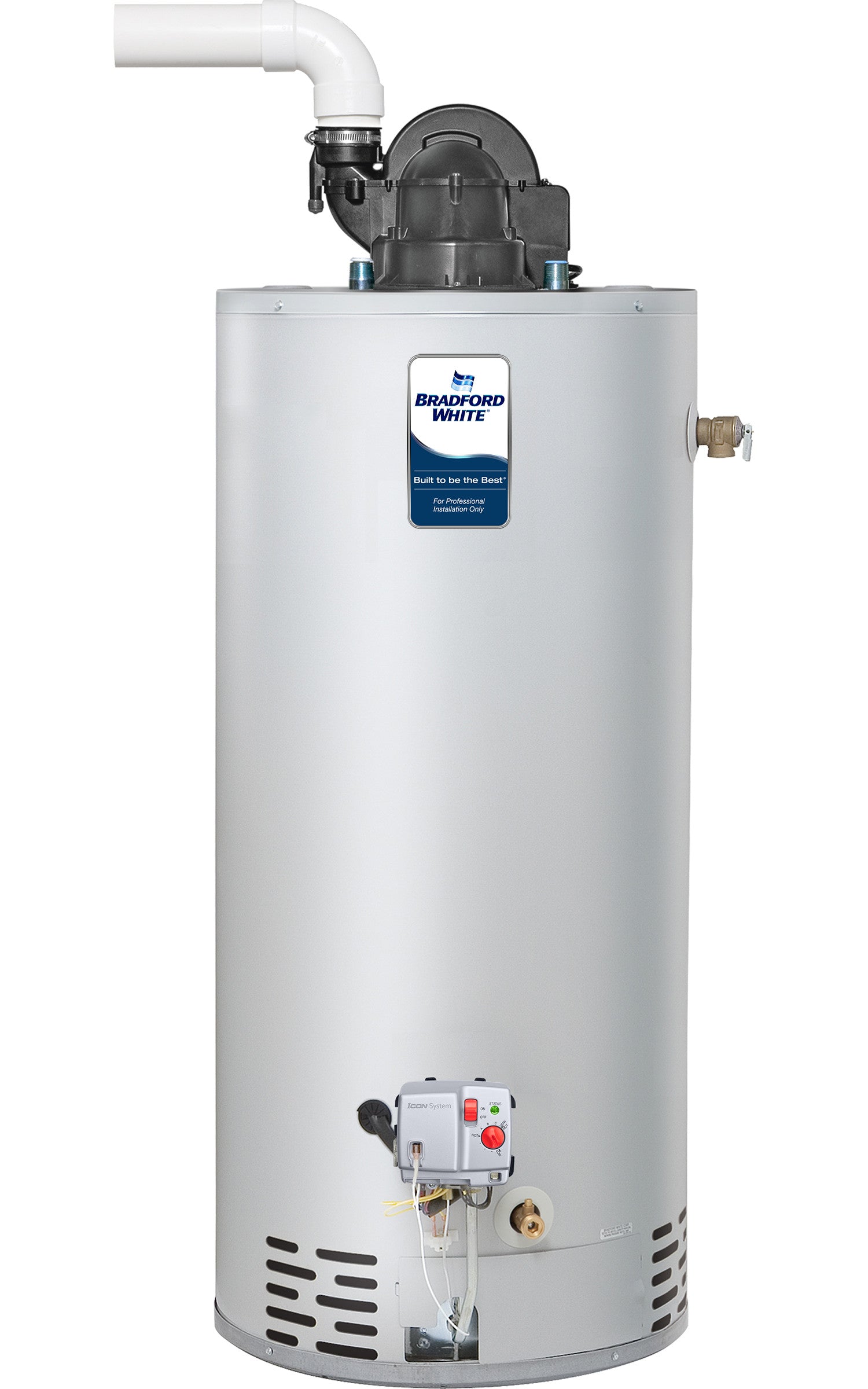

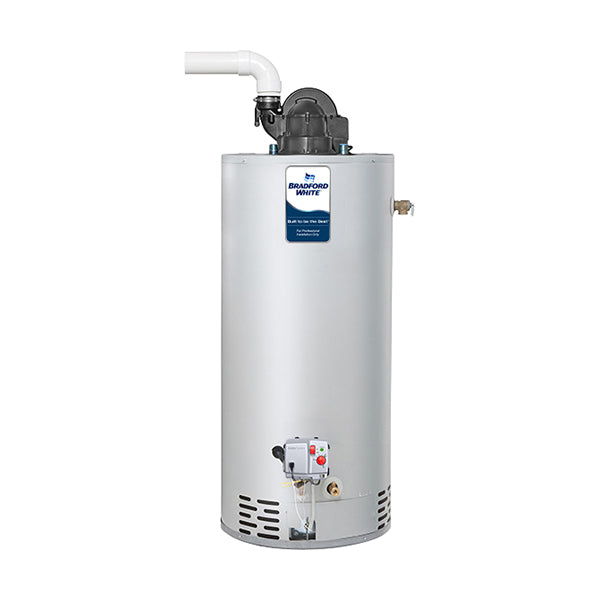

BRADFORD WHITE RG2PV50S6N19 50 GAL/40 BTU/#32/4.0 WC
BRADFORD WHITE RG2PV50S6N19 50 GAL/40 BTU/#32/4.0 WC
PDIPN:
235784
Key Features
Regular price
$2,892.60
Sale price
$2,892.60
Regular price
Overview
Overview
The TTW power vent collection water heater is designed for applications that require flexible venting and reliable hot water performance. The power vent system exhausts gases under positive pressure, allowing venting through a wall or roof using PVC, ABS, or CPVC piping. This design simplifies installation in locations where standard atmospheric venting may not be suitable. The unit delivers a higher volume of hot water at a usable temperature in less time, making it well suited for residential and light commercial applications that require consistent and efficient hot water supply.
Specifications
Specifications
Dimensions and Measurements
- Diameter (in) 24 in
- Overall Depth (in) 28.88 in
- Overall Height (in) 56-7/16 in
- Overall Width (in) 24.75 in
- Efficiency Rating (UEF or EF) 0.67 UEF
- Water Connection Size (in) 3/4 in
Characteristics and Features
- Plumbing Connection Type NPT
- Water Heater Type Gas Tank
- Manufacturer Warranty 6 Years
Material
- Material Steel
Yes/No Features
- Vented (Yes/No) Yes
Performance Capacity
- Recovery Rate (gph) 43 gph
- BTU Rating (BTU/hr) 40000 BTU/hr
- Capacity (gal) 50 gal
Electrical Information
- Voltage (V) 120 V
Compatibility
- Commercial/Residential Residential
Location
- Indoor/Outdoor Indoor
