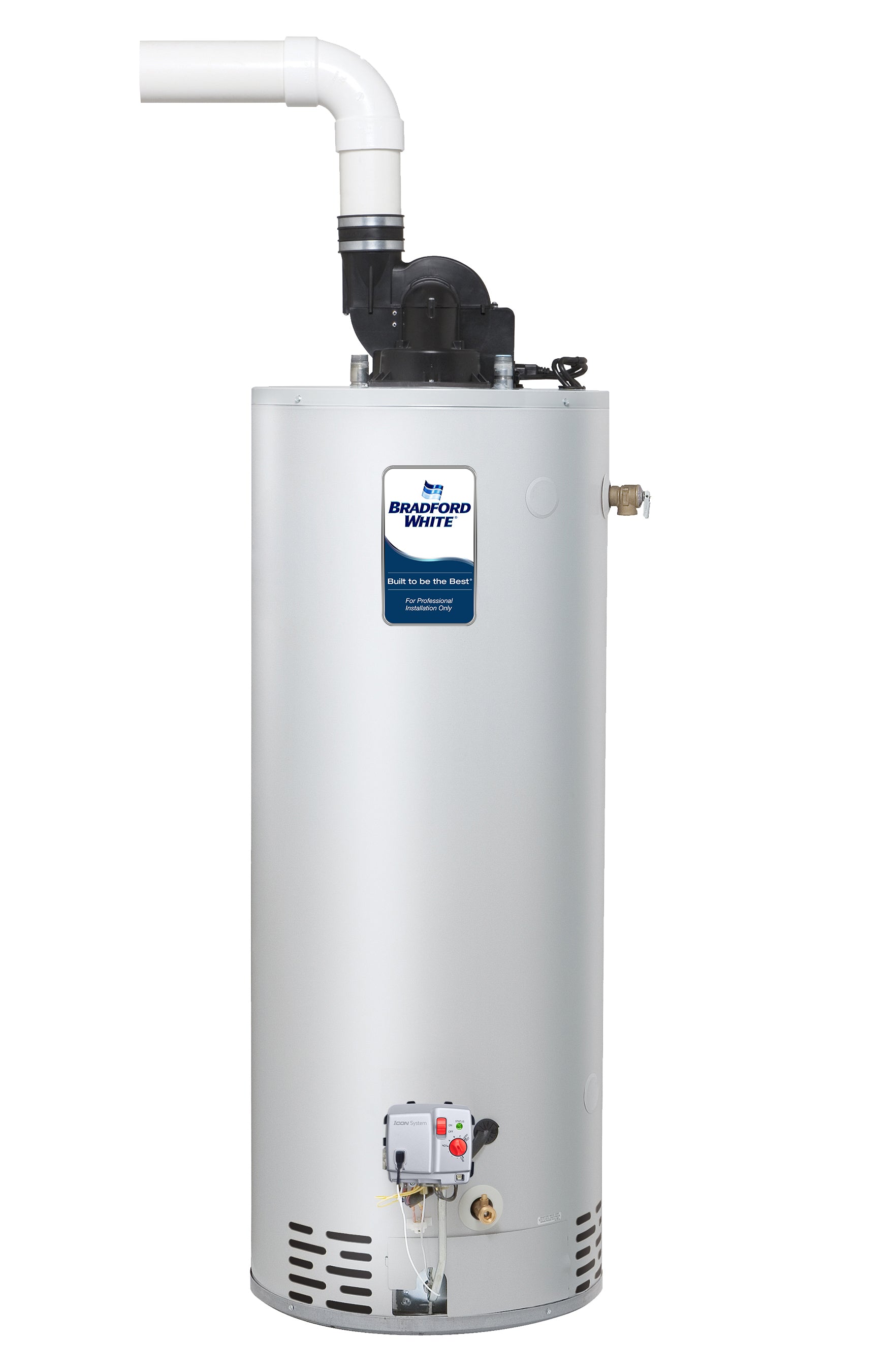

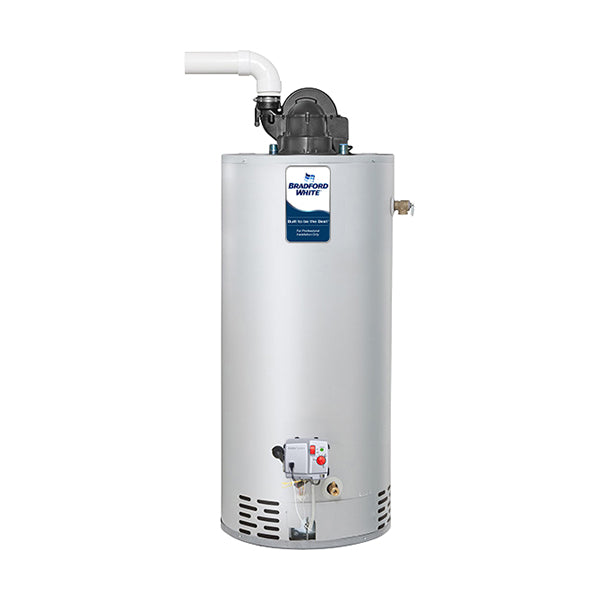

BRADFORD WHITE RG2PV75H6N 75 GAL/76 BTU/#21/4.0 WC
BRADFORD WHITE RG2PV75H6N 75 GAL/76 BTU/#21/4.0 WC
PDIPN:
232810
Key Features
Regular price
$3,609.00
Sale price
$3,609.00
Regular price
Overview
Overview
The Power Vent TTW collection gas water heater is designed to deliver reliable hot water with flexible installation options. Its power vent system provides positive exhaust, allowing venting through a wall or roof using PVC, ABS, or CPVC piping. This design helps simplify installation in areas where traditional venting may not be suitable. The system also supports faster hot water recovery, providing a greater amount of usable hot water in less time. Built for residential applications, it offers dependable performance and a steady hot water supply for everyday household needs.
Specifications
Specifications
Dimensions and Measurements
- Diameter (in) 26 in
- Overall Depth (in) 30.69 in
- Overall Height (in) 69-7/16 in
- Overall Width (in) 26.88 in
- Efficiency Rating (UEF or EF) 0.69 UEF
- Water Connection Size (in) 3/4 in
Characteristics and Features
- Fuel Type Natural Gas
- Plumbing Connection Type NPT
- Water Heater Type Gas Tank
- Manufacturer Warranty 6 Years
Material
- Material Steel
Yes/No Features
- Vented (Yes/No) Yes
Performance Capacity
- Recovery Rate (gph) 82 gph
- BTU Rating (BTU/hr) 76000 BTU/hr
- Capacity (gal) 75 gal
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Voltage (V) 120 V
Compatibility
- Commercial/Residential Residential
Location
- Indoor/Outdoor Indoor
