BRADFORD WHITE RG2PV75H6X 75 GAL/75.5 BTU/#40/10.0 WC
BRADFORD WHITE RG2PV75H6X 75 GAL/75.5 BTU/#40/10.0 WC
PDIPN:
235778
Key Features
Regular price
$3,681.00
Sale price
$3,681.00
Regular price
Overview
Overview

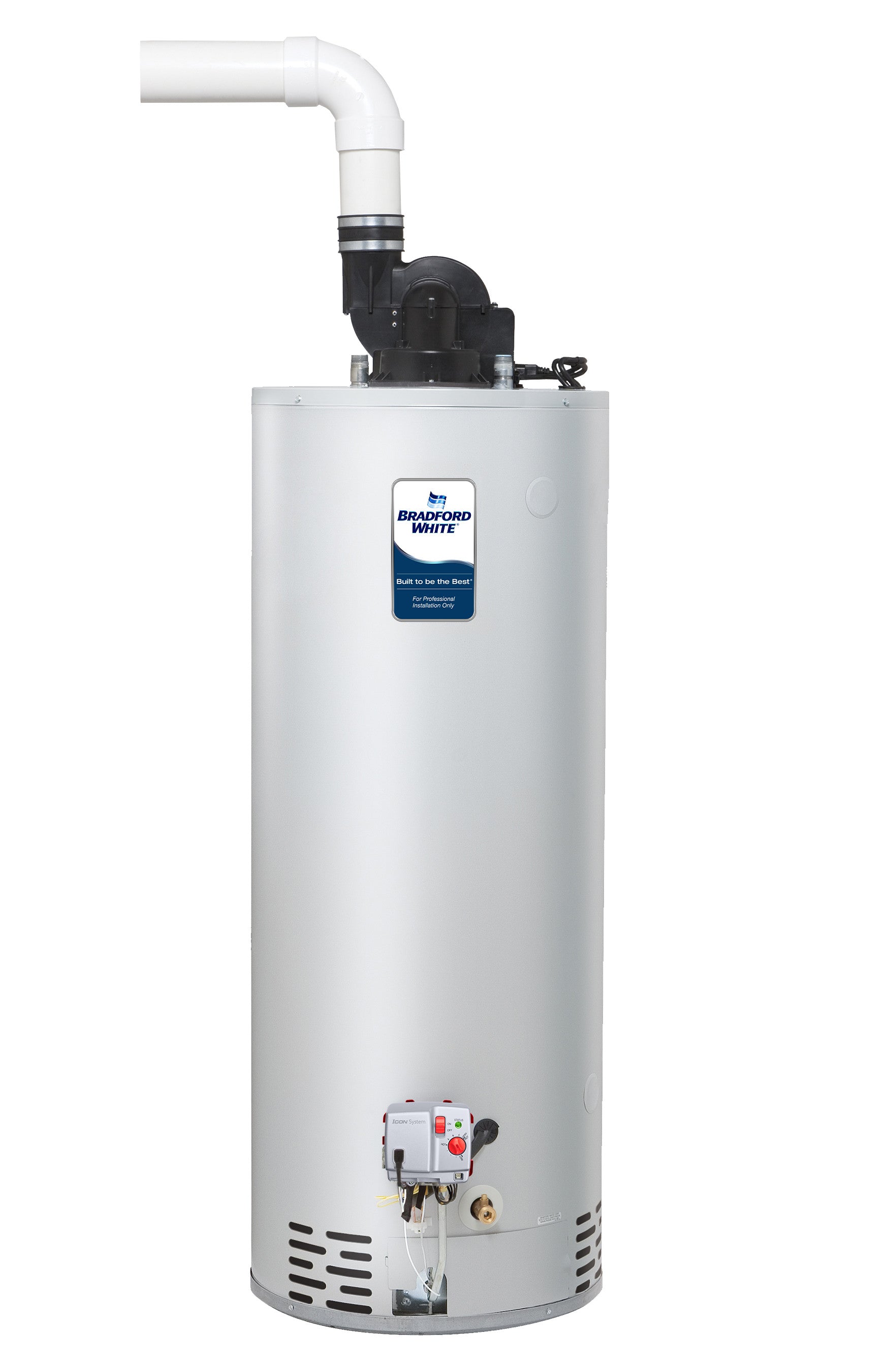

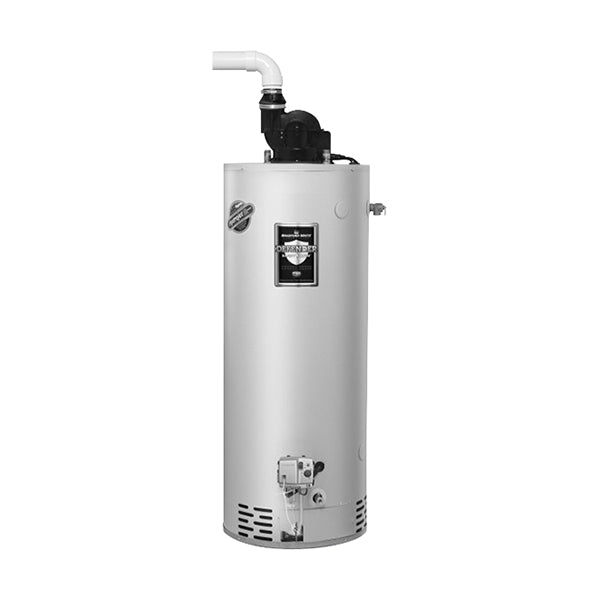

SPECIAL ORDER ITEM. Review Returns Policy before purchase. The Power Vent TTW series gas water heater is designed to deliver reliable hot water while offering flexible installation options. The system uses power venting to exhaust combustion gases under positive pressure, allowing venting through either a wall or roof. Compatible with PVC, ABS, or CPVC vent piping, it supports a variety of installation configurations. The design provides higher hot water availability at usable temperatures in less time than standard input models, making it suitable for residential applications that require dependable performance and efficient hot water delivery.
Specifications
Specifications
Dimensions and Measurements
- Diameter (in) 26 in
- Overall Depth (in) 30.69 in
- Overall Height (in) 70 in
- Overall Width (in) 26.88 in
- Efficiency Rating (UEF or EF) 0.69 UEF
- Water Connection Size (in) 3/4 in
Characteristics and Features
- Plumbing Connection Type NPT
- Water Heater Type Gas Tank
- Manufacturer Warranty 6 Years
Material
- Material Steel
Yes/No Features
- Vented (Yes/No) Yes
Performance Capacity
- Recovery Rate (gph) 82 gph
- BTU Rating (BTU/hr) 75500 BTU/hr
- Capacity (gal) 75 gal
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Voltage (V) 120 V
Compatibility
- Commercial/Residential Residential
Location
- Indoor/Outdoor Indoor
