Ball Valve, 5/8 x 3/4 in Nominal, Yellow

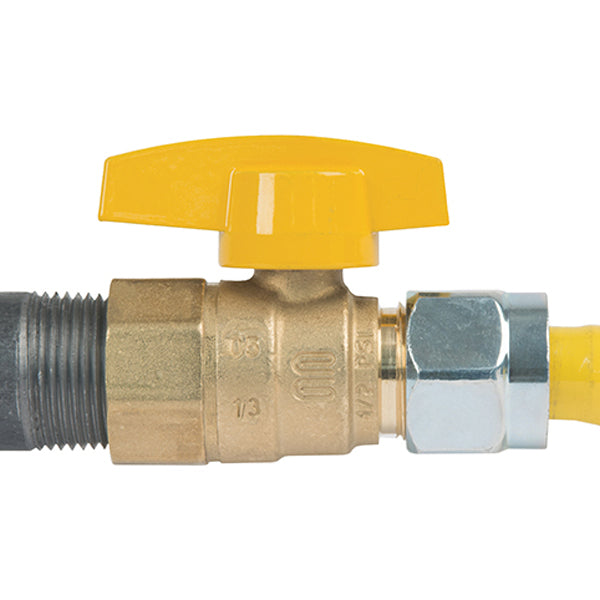

BRASSCRAFT TBV10-12 GAS BALL VALVE 5/8IN OD FLARE (15/16-16 THREAD) X 3/4IN FIP
PDIPN:
142753
Key Features
Regular price
$22.40
Sale price
$22.40
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for natural, manufactured, mixed, liquefied-petroleum, and LP gas-air mixtures, this full port ball valve features a 5/8 in OD flare connection with 15/16-16 threads and a 3/4 in FIP inlet. The forged brass body construction prevents pinhole leaks often found in cast alternatives. Designed for operational safety, the blow-out proof stem utilizes double o-rings, while the internal PTFE seat rings ensure consistent sealing. This valve operates at a maximum pressure of 5 psi and maintains structural integrity across a temperature range of -40 to 150 degrees Fahrenheit. The quarter turn lever handle allows for rapid flow control in gas line applications.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 2.9 in
- Thread Size (in) 5/8 x 3/4 in
- Water Connection Size (in) 5/8 x 3/4 in
- Pressure Rating (PSI) 5 PSI
- Temperature Rating (deg) 150 deg
Characteristics and Features
- Port Type Full Port
- Plumbing Connection Type FIP
- Valve Handle Type Quarter Turn
Number Of
- Quantity (Count) 1
Material
- Material Stainless Steel
