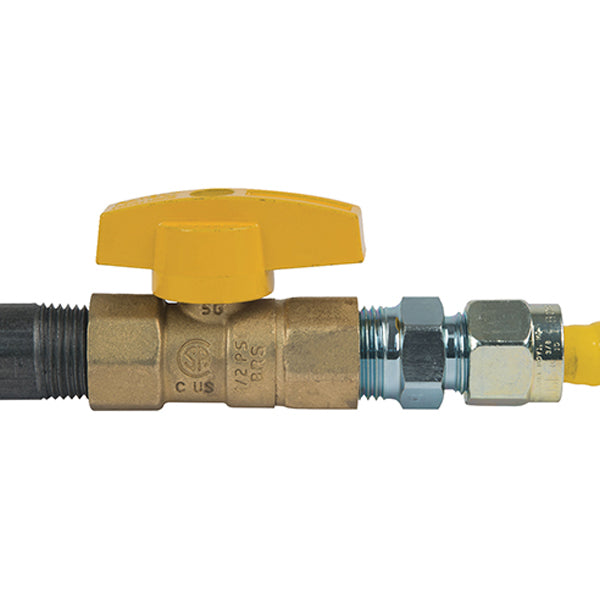

1/2 in Gas Ball Valve, Yellow
BRASSCRAFT TBV8 GAS BALL VALVE 1/2IN FIP X 1/2IN FIP
PDIPN:
90111
Key Features
Regular price
$8.18
Sale price
$8.18
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for natural, manufactured, mixed, and liquefied-petroleum gas systems, this full port ball valve features a 1/2 in FIP by 1/2 in FIP connection. The forged brass body construction prevents pinhole leaks, while the blow-out proof stem utilizes double o-rings for secure operation. Designed for gas-air mixtures, the unit operates within a temperature range of -40 to 150 degrees Fahrenheit and maintains a pressure rating of 5 psi. The quarter turn handle allows for rapid shut-off control, and the internal PTFE seat rings provide consistent sealing. This component is backed by a 1-year limited warranty.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 1.94 in
- Thread Size (in) 1/2 in
- Water Connection Size (in) 1/2 in
- Pressure Rating (PSI) 5 PSI
- Temperature Rating (deg) 150 deg
Characteristics and Features
- Port Type Full Port
- Plumbing Connection Type FIP
- Valve Handle Type Quarter Turn
Number Of
- Quantity (Count) 1
Material
- Material Brass
