Broan

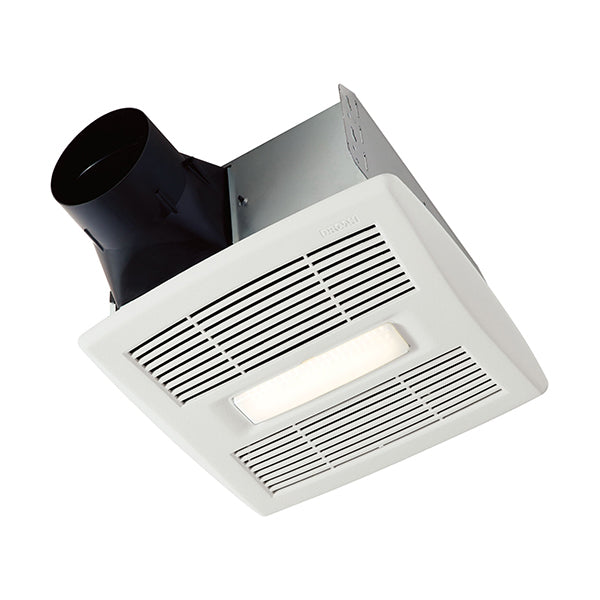

Flex Series 80 CFM 0.7 Sones Ventilation with Fan Light - Energy Star Certified, White

Name: Flex Series 80 CFM 0.7 Sones Ventilation with Fan Light - Energy Star Certified, White
Brand: Broan
SKU: 2126
Price: 113.00 USD
Availability: InStock

MPN: AE80BL

PDIPN: 2126

Key Features

Room-side EzDuct connector for easy install
TrueSeal damper reduces air leakage up to 50%
UL listed for use over tubs with GFCI circuit

Part of the Flex Collection

See All Product Information

$113.00

Shipping calculated at checkout.

Installation Instructions

Specifications

Flex Series 80 CFM 0.7 Sones Ventilation with Fan Light - Energy Star Certified, White

Default Title

$113.00

Overview

SPECIAL ORDER ITEM. Review Returns Policy before purchase. Flex Series white 80 cfm ceiling exhaust bathroom fan is revolutionary to the fan industry. With a full range of operating points, consumers have the flexibility to install this series in new construction or as a room-side retrofit. Innovations to the product in foldable mounting ears, new damper and housing that improves building airtightness like never before. With a new clean look for the grille, the Flex Series compliments any style decor.

Specifications

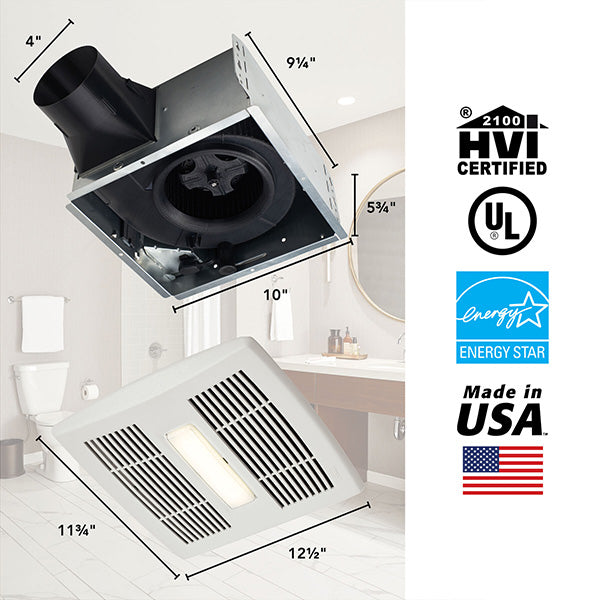

Dimensions and Measurements

Overall Depth (in) 5-3/4 in
Overall Length (in) 9-1/4 in
Overall Width (in) 10 in
Sone Rating 0.7
Duct Size (in) 4 in
Recommended Room Size (sq ft) Small (<79 sq ft)

Characteristics and Features

Motor Type AC
Installation Type Ceiling Mounted
Manufacturer Warranty 3 Years

Number Of

Quantity (Count) 1

Material

Material Galvanized Steel

Yes/No Features

Fan Only (Yes/No) Yes
Heater Components Included (Yes/No) No
Humidity Sensing (Yes/No) No
Lighting Included (Yes/No) Yes

Performance Capacity

CFM Rating (ft3/min) 80 cfm
Air Volume (CFM) 80 CFM

Electrical Information

Frequency Rating (Hz) 60 Hz
Amperage (A) 0.5 A
Voltage (V) 120 V

Shape

Grille Shape Square
