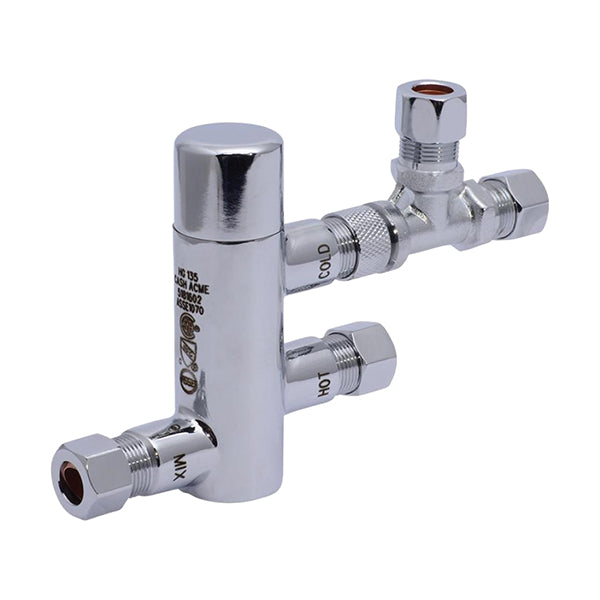

CASH 25686 3/8 LF MIXING VALVE
CASH 25686 3/8 LF MIXING VALVE
PDIPN:
102905
Key Features
Regular price
$128.06
Sale price
$128.06
Regular price
Shipping calculated at checkout.
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This thermostatic mixing valve is designed to enhance safety by controlling water temperature. This compact under-sink valve helps prevent scalding by maintaining a consistent outlet temperature that is factory set at 120 degrees Fahrenheit and adjustable between 85 degrees and 130 degrees Fahrenheit.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 3-1/2 in
- Fitting Size (in) 3/8 in
- Inlet Diameter (in) 3/8 in
- Outlet Diameter (in) 3/8 in
- Thread Size (in) 3/8 in
- Valve Size (in) 3/8 in
Characteristics and Features
- Plumbing Connection Type Compression
Number Of
- Quantity (Count) 1
Material
- Material Bronze
Performance Capacity
- Flow Rate (gpm) 0.25 to 2.5 gpm
- Pressure Rating (PSI) 180 PSI
- Temperature Rating (deg) 100-120 deg
Certification & Compliance
- ANSI Certified (Yes/No) Yes
- Low Lead Compliant (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) Yes
Operation Detail
- Body Pattern Straight
