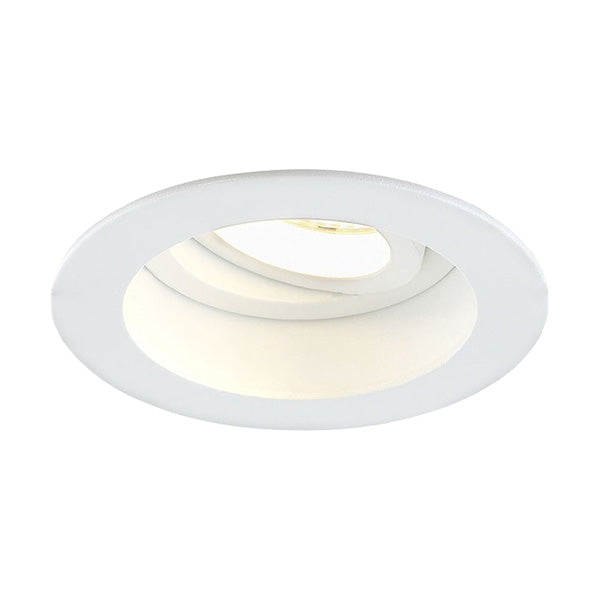

Amigo 12 in x 3-7/8 in Adjustable Trim and Remodel Housing, White
Amigo 12 in x 3-7/8 in Adjustable Trim and Remodel Housing, White
PDIPN:
220173
Key Features
Regular price
$225.00
Sale price
$225.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. The Amigo collection features a 3 in round aperture remodel housing constructed from durable 18 gauge powder coated steel. This adjustable gimbal trim provides versatile directional lighting with a 30 degree tilt and a 40 degree beam angle. The fixture includes an integrated 15 watt LED module delivering 1290 lumens for efficient performance. Designed for non-IC applications, it requires insulation to be kept at least 3 in away from the housing. The unit includes a class 2 dimmable constant current driver and connects via a 12 in flexible BX cable. It is thermally protected and compatible with standard 120V TRIAC dimmers.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 12 in
- Overall Width (in) 3-7/8 in
- Overall Height (in) 5-3/4 in
- Overall Depth (in) 3-1/2 in
- Beam Angle (deg) 40 deg
- Trim Size (in) 3 in
- Rated Life Hours 50,000 hours
- Lumens (lm) 1290 lm
Characteristics and Features
- Bulb Base Type E12 Candelabra
- Shade Shape Type Round
Finish
- Color/Finish Whites
- Color Rendering Index (CRI) 80 CRI
- Color Temperature (K) 3500 K
Number Of
- Number of Bulbs 1
Material
- Material Metal
- Shade Material Metal
