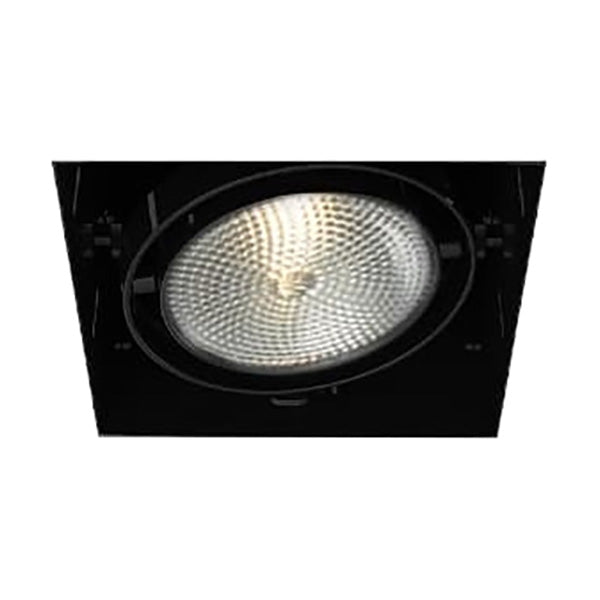

12 in x 5-5/8 in Square Trimless Downlight, Black
12 in x 5-5/8 in Square Trimless Downlight, Black
PDIPN:
212058
Key Features
Regular price
$107.20
Sale price
$107.20
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This remodel housing features adjustable mounting clips compatible with 1/2-in and 5/8-in drywall. The included steel mesh plate and perforated perimeter allow mud to bond to the mounting surface, creating a seamless look in the ceiling. Designed for versatility, it offers a horizontal adjustment range of 0 degrees to 35 degrees and an adjustable socket holder that accommodates both long and short neck lamping. The junction box includes multiple knockouts for efficient branch circuit wiring, and the unit is thermally protected for safe operation.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 12 in
- Overall Width (in) 5-5/8 in
- Overall Height (in) 7-3/8 in
- Overall Depth (in) 5-5/8 in
- Beam Angle (deg) 60 deg
- Trim Size (in) 6 in
Characteristics and Features
- Bulb Base Type E26 Medium
- Shade Shape Type Square
Finish
- Color/Finish Blacks
- Color Rendering Index (CRI) 90 CRI
- Color Temperature (K) 3000 K
Number Of
- Number of Bulbs 1
Material
- Material Metal
- Shade Material Aluminium, Glass
Yes/No Features
- Bulbs Included (Yes/No) Yes
Performance Capacity
- Rated Life Hours 50,000 hours
- Lumens (lm) 950 lm
Electrical Information
- Power Source Hardwired
- Voltage (V) 120 V
Certification & Compliance
- CSA Certified (Yes/No) Yes
- Energy Star Certified (Yes/No) No
- ETL Compliant (Yes/No) Yes
- RoHS Compliant (Yes/No) Yes
- UL Compliant (Yes/No) Yes
- Location Rating Dry Rated
Style
- Design Style Contemporary
- Trim Style Open
