3 in Wall Install Dusk-to-Dawn Sensor Locking Type Thermal Photocontrol, White/Gray
3 in Wall Install Dusk-to-Dawn Sensor Locking Type Thermal Photocontrol, White/Gray
PDIPN:
235386
Key Features
Regular price
$16.12
Sale price
$16.12
Regular price
Overview
Overview

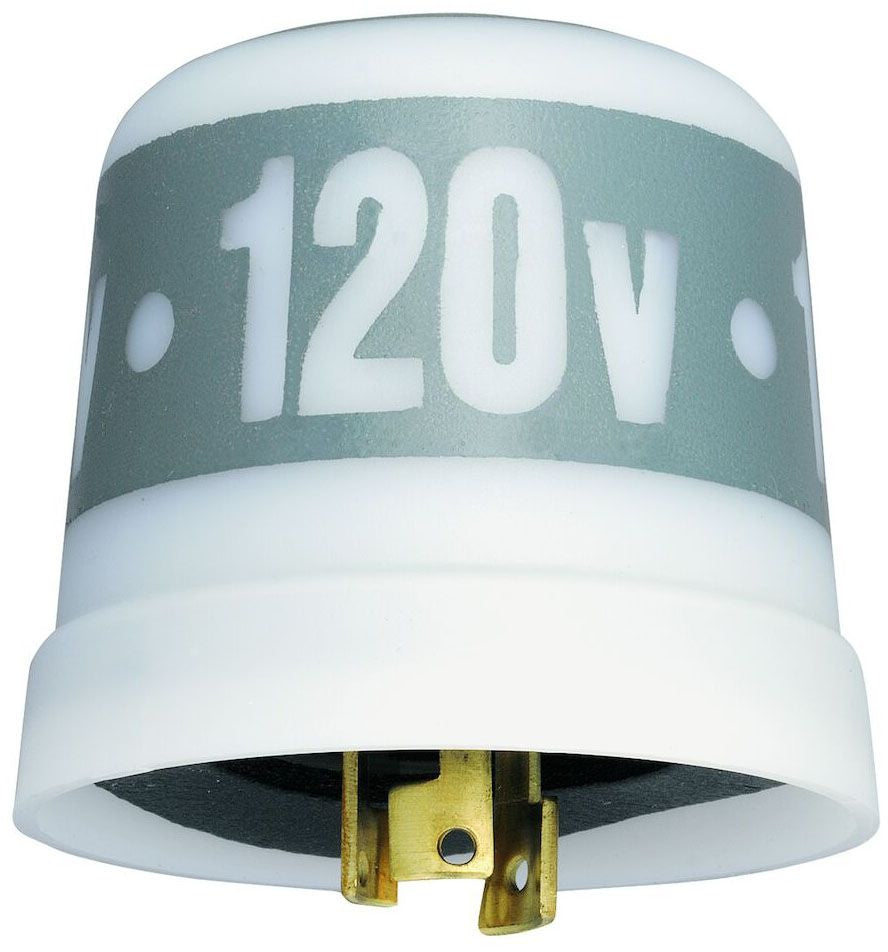

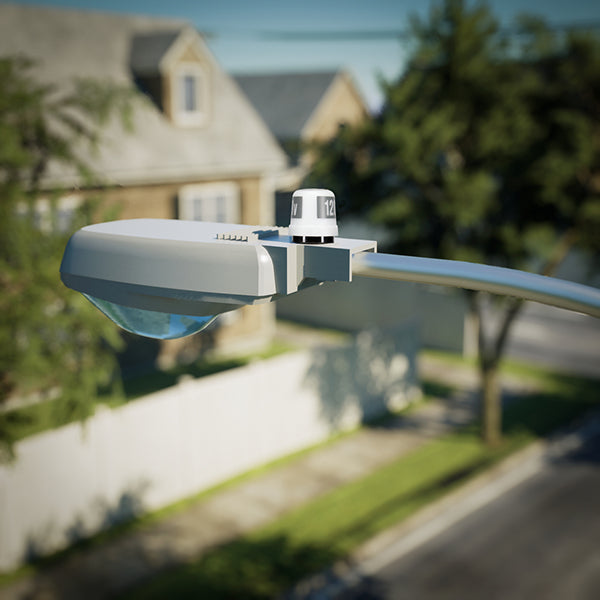

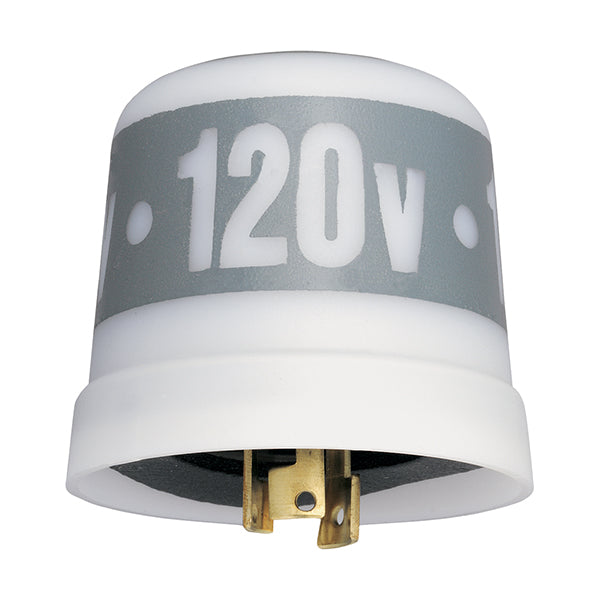

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This is a locking-type thermal photocontrol designed for automatic dusk-to-dawn lighting control in outdoor environments such as streetlights, parking lots, and building exteriors. It is specifically built for use with fixtures that have twist-lock receptacles, making installation and replacement quick and efficient. This photocontrol operates on 120 VAC (50/60 Hz) and uses a cadmium sulphide photocell sensor paired with a mechanical bimetal switch. This combination ensures reliable detection of ambient light levels, automatically switching lights ON at dusk and OFF at dawn without manual intervention.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 3 in
- Overall Width (in) 3 in
- Overall Height (in) 2-3/4 in
Characteristics and Features
- Installation Type Wall Install
Material
- Material Polypropylene
Yes/No Features
- Insulated (Yes/No) No
Certification & Compliance
- CSA Certified (Yes/No) Yes
- NEMA FB-1 Compliant (Yes/No) No
