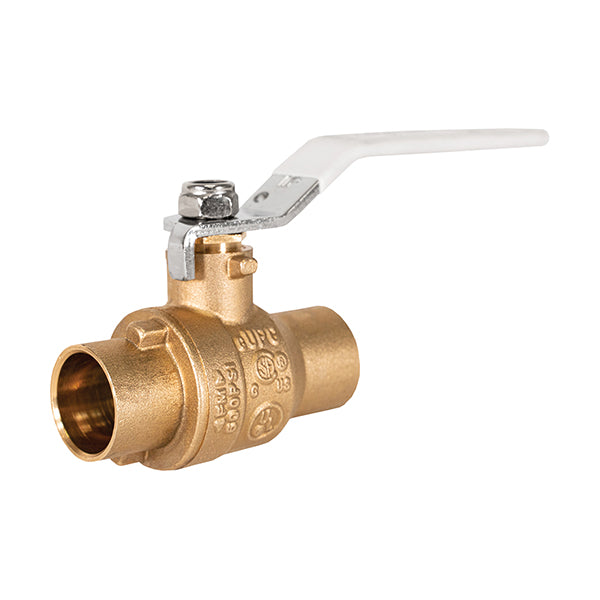

2-Piece Ball Valve With Handle, 1/2 in, Solder, Brass
2-Piece Ball Valve With Handle, 1/2 in, Solder, Brass
PDIPN:
76582
Key Features
Regular price
$14.74
Sale price
$14.74
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for water systems, this 2-piece ball valve features a full port design to ensure maximum flow capacity. The brass body construction incorporates a gland follower and a single O-ring stem design to maintain seal integrity. Rated for 600 WOG and 150 WSP, this valve handles operating temperatures ranging from -40 to 500 degrees Fahrenheit. The blow-out proof stem provides added safety during high-pressure operation, while the solder connection ensures a permanent, leak-resistant installation. Built with a dezincification resistant brass alloy, this component is designed for long-term reliability in plumbing applications.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 2.17 in
- Thread Size (in) 1/2 in
- Water Connection Size (in) 1/2 in
- Pressure Rating (PSI) 600 PSI
- Temperature Rating (deg) 500 deg
Characteristics and Features
- Port Type Full Port
- Plumbing Connection Type Sweat
- Valve Handle Type Lever
Number Of
- Quantity (Count) 2
Material
- Material Stainless Steel
