1/2 in Lead Free Brass Ball Valve, 2-Piece Expansion Pex Connection, Stainless Steel Trim

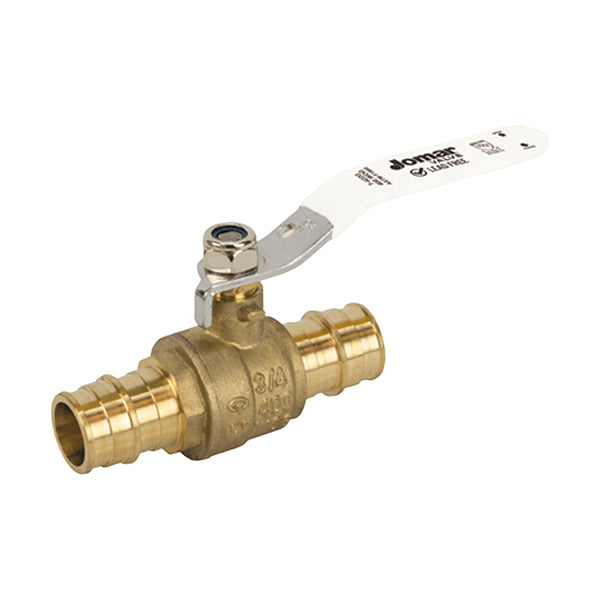

JOMAR 104-523PG 1/2" EXPANSION PEX A BALL VALVE
PDIPN:
19997
Key Features
Regular price
$6.42
Sale price
$6.42
Regular price
Overview
Overview
Engineered for residential and commercial plumbing systems, this 2-piece ball valve features a lead-free brass construction with stainless steel trim for enhanced corrosion resistance. The valve utilizes an expansion Pex connection for secure, reliable integration into piping networks. Rated for pressures up to 400 psi and temperatures reaching 200 degrees Fahrenheit, this standard port valve provides consistent flow control. The design incorporates a blow-out proof stem, a gland follower, and a single O-ring stem seal to prevent leaks and ensure operational safety under pressure. This dezincification-resistant alloy component is designed for long-term performance in demanding water distribution environments.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 2.58 in
- Thread Size (in) 1/2 in
- Water Connection Size (in) 1/2 in
- Pressure Rating (PSI) 400 PSI
- Temperature Rating (deg) 200 deg
Characteristics and Features
- Port Type Standard Port
- Plumbing Connection Type PEX
- Valve Handle Type Lever
Number Of
- Quantity (Count) 2
Material
- Material Brass
