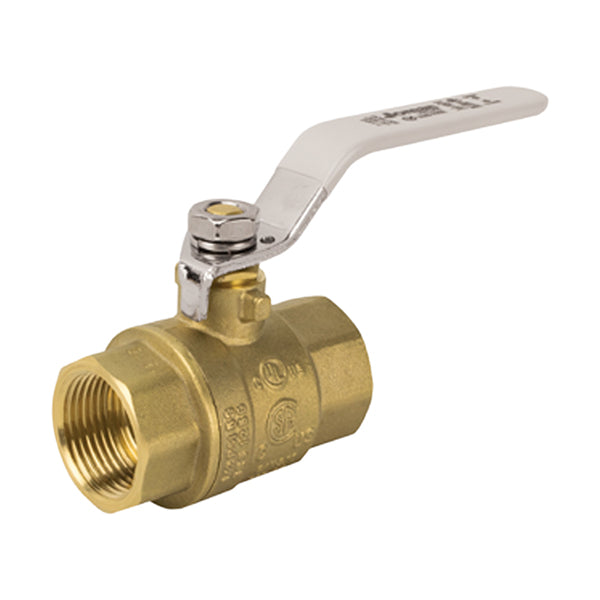

JM150103G JOMAR 1/2 IPS BALL VLV F/P (10/100)
JM150103G JOMAR 1/2 IPS BALL VLV F/P (10/100)
PDIPN:
18569
Key Features
Regular price
$7.92
Sale price
$7.92
Regular price
Overview
Overview
Engineered for reliable flow control, this 2-piece ball valve features a full port design that minimizes pressure drop and maximizes flow capacity. Constructed from dezincification-resistant brass alloy, the valve is built to withstand demanding plumbing environments. It incorporates a blow-out proof stem for enhanced safety and a gland follower with a single O-ring stem design to ensure a secure, leak-resistant seal. Rated for high-pressure applications up to 600 psi, this valve utilizes a standard NPT threaded connection for secure integration into residential or commercial piping systems. The lever handle allows for quick, quarter-turn operation to manage water supply effectively.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 2.09 in
- Thread Size (in) 1/2 in
- Water Connection Size (in) 1/2 in
- Pressure Rating (PSI) 600 PSI
- Temperature Rating (deg) 250 deg
Characteristics and Features
- Port Type Full Port
- Plumbing Connection Type NPT
- Valve Handle Type Lever
Number Of
- Quantity (Count) 2
Material
- Material Brass
