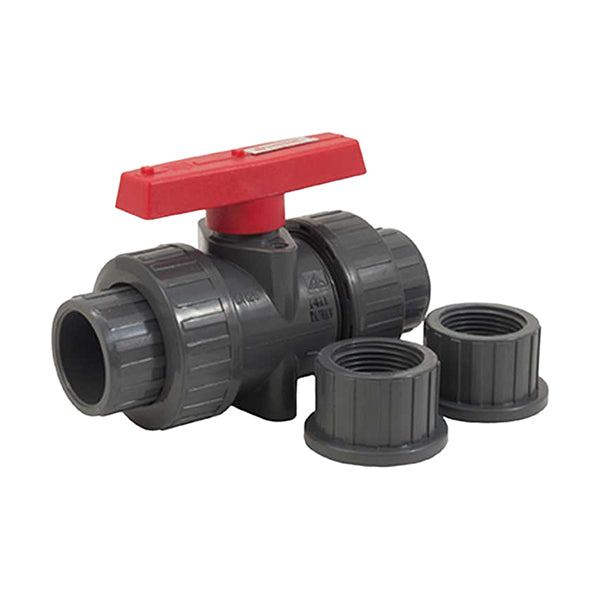

1-1/2 in Tru-Union PVC 80 Ball Valve, Black
JOMAR 210-547 1-1/2 T/S-703 BALL VL
PDIPN:
207081
Key Features
Regular price
$42.03
Sale price
$42.03
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for 1-1/2 in piping systems, this full port ball valve features a Tru-Union design that allows for simple line breakdowns without the need for additional union installations. The valve supports both threaded and solvent connections, providing versatility for Schedule 80 plumbing configurations. It is rated for a maximum pressure of 150 psi at 73 degrees Fahrenheit and operates within a temperature range of 41 to 140 degrees Fahrenheit. The lever handle provides quick quarter-turn flow control, while the union nuts are designed for hand-tightened operation to facilitate maintenance and system access.
Specifications
Specifications
Dimensions and Measurements
- Water Connection Size (in) 1-1/2 in
- Pressure Rating (PSI) 150 PSI
- Temperature Rating (deg) 140 deg
Characteristics and Features
- Port Type Full Port
- Plumbing Connection Type IPS
- Valve Handle Type Lever
Number Of
- Quantity (Count) 1
Material
- Material PVC
