THIKFIPLF JOMAR FIP TANKLESS HTR INSTL KIT 810-504G 336 PER PALLET (14)
THIKFIPLF JOMAR FIP TANKLESS HTR INSTL KIT 810-504G 336 PER PALLET (14)
PDIPN:
1356
Key Features
Regular price
$85.08
Sale price
$85.08
Regular price
Overview
Overview

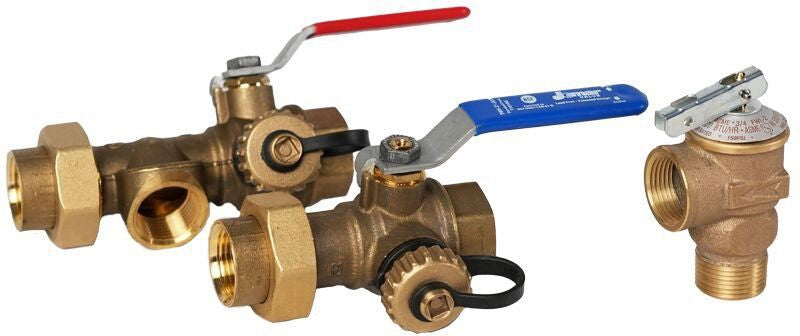

This Jomar 3‑way valve kit is a lead‑free brass control designed for tankless water heater installations. It features a patented TEA‑coated 3‑way ball and multiple sealing points to help prevent stem leaks and ensure long‑lasting performance. With 3/4 in nominal threaded NPT connections, a pressure rating up to 600 WOG, and a built‑in pressure relief path suitable for up to ~200,000 BTU/hr, it allows controlled flow and safe operation in hot/cold water applications. The valve kit is 100 percent factory leak tested and is suitable for residential and commercial tankless system service points where reliable isolation and pressure relief are needed.
Specifications
Specifications
Dimensions and Measurements
- Overall Height (in) 6 in
- Overall Length (in) 8-1/2 in
- Overall Width (in) 3-1/2 in
- Thread Size (in) 3/4 in
- Drain Connection Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
Characteristics and Features
- Plumbing Connection Type NPT
- Water Heater Type Tankless
- Manufacturer Warranty Refer manufacturer website for warranty
Material
- Material Brass
