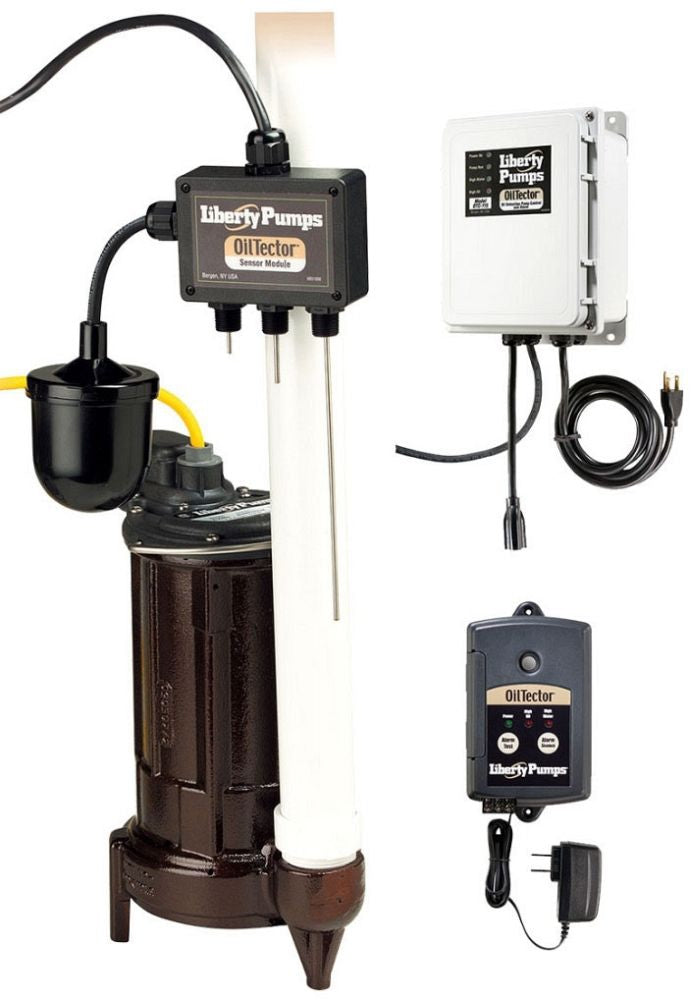

ELV Series 3/4 HP 115V 1-1/2 in Tethered Float Elevator Pump System with Remote Alarm and Control Panel, Gray
ELV Series 3/4 HP 115V 1-1/2 in Tethered Float Elevator Pump System with Remote Alarm and Control Panel, Gray
PDIPN:
69386
Key Features
Regular price
$3,366.00
Sale price
$3,366.00
Regular price
Shipping calculated at checkout.
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. The elevator sump pump system is designed and approved for safe operation of pumping and monitoring of elevator sump pits, transformer vaults and other applications where oil and water must be detected. This system features the unique oiltector control which activates the pump to remove water from elevator pits in accordance. It provides pumping of only water even if an oil condition is detected, and cycles the pump only in the water range to prevent hydrocarbons from being discharged into the environment. The heavy-duty cast iron construction handles solids up to 3/4 in and includes an oil resistant cord for durability in harsh conditions.
Specifications
Specifications
Dimensions and Measurements
- Cord Length (ft) 25 ft
- Discharge Size (in) 1-1/2 in
Characteristics and Features
- NEMA Enclosure Type NEMA 1
- Pump Switch Type Tethered Float
- Manufacturer Warranty 3 Years
Material
- Material Cast Iron
Performance Capacity
- Flow Rate (gpm) 78 gpm
- Horsepower (HP) 3/4 HP
Electrical Information
- Voltage (V) 115 V
Operation Detail
- Power Rating (W) 746 W
