NEWPORT BRASS 1-745 LUXTHERM« 1/2 THERMOSTATIC ROUGH-IN (2 PORT SHARED)
NEWPORT BRASS 1-745 LUXTHERM« 1/2 THERMOSTATIC ROUGH-IN (2 PORT SHARED)
PDIPN:
60943
Key Features
Regular price
$574.70
Sale price
$574.70
Regular price
Overview
Overview

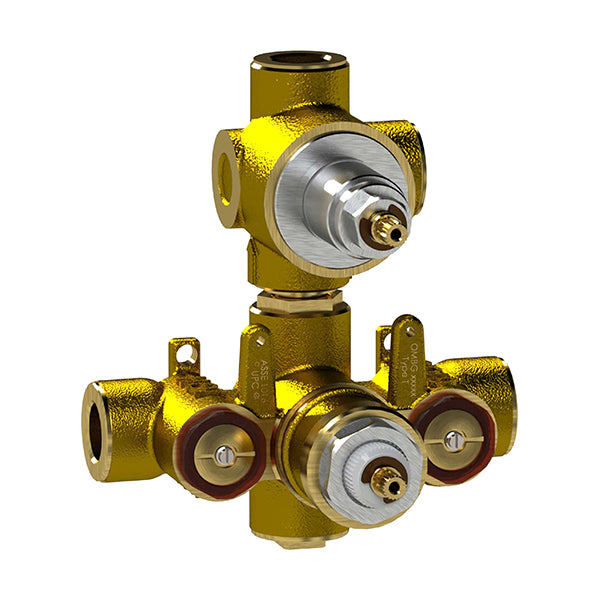

The Newport Brass Luxtherm 1/2 in 2-port shared thermostatic rough-in valve offers solid brass construction for lasting durability. It provides precise temperature regulation with anti-scald protection and includes an integrated shut-off function for safe operation. The valve features built-in check valves with service stops, a high-temperature safety stop limiting water to 100 degrees f (37.7 degrees C), and a 2-way diverter configuration. With a flow rate of 8.75 gpm at 45 psi, 1/2 in NPT female inlet and outlet threads, and secure mounting tabs, it ensures reliable performance and easy installation. Compatible with Newport Brass Luxtherm trim (sold separately).
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 5-3/7 in
- Overall Width (in) 4-3/4 in
- Overall Height (in) 6-2/7 in
- Valve Size (in) 1/2 in
- Flow Rate (gpm) 8.75 gpm
Characteristics and Features
- Plumbing Connection Type NPT
Number Of
- Quantity (Count) 1
Material
- Material Brass
