PFISTER 015-3WDNSS T/S 15 3WAY STCKD DVT VLV NON-SHRD PP 0153WDNSS FCT DIVERTER VALVE
PFISTER 015-3WDNSS T/S 15 3WAY STCKD DVT VLV NON-SHRD PP 0153WDNSS FCT DIVERTER VALVE
PDIPN:
217870
Key Features
Regular price
$192.50
Sale price
$192.50
Regular price
Shipping calculated at checkout.
Overview
Overview

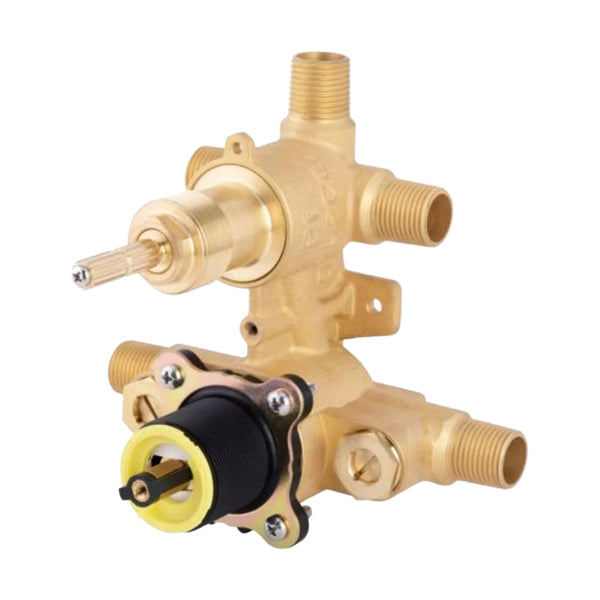

The Diverter Valve is installed inside the wall behind tile or drywall. Once connected to your hot and cold supply lines, it sits behind a trim plate and handle on the finished wall. Turning the handle selects which of the three outputs receives water — offering flexibility in shower design and user control.
Specifications
Specifications
Dimensions and Measurements
- Fitting Size (in) 1/2 in
- Inlet Diameter (in) 1/2 in
- Outlet Diameter (in) 1/2 in
- Valve Size (in) 1/2 in
Characteristics and Features
- Plumbing Connection Type NPT
- Manufacturer Warranty Warranty As Per Manufacturer Website
Number Of
- Number of Positions 3
- Quantity (Count) 1
Material
- Material Brass
Performance Capacity
- Pressure Rating (PSI) 125 PSI
- Temperature Rating (deg) 160 deg
Certification & Compliance
- ANSI Certified (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) Yes
Operation Detail
- Body Pattern 3-Way
