POWERS LFE-480-00 6550045 M/V
POWERS LFE-480-00 6550045 M/V
PDIPN:
41072
Key Features
Regular price
$558.40
Sale price
$558.40
Regular price
Shipping calculated at checkout.
Overview
Overview

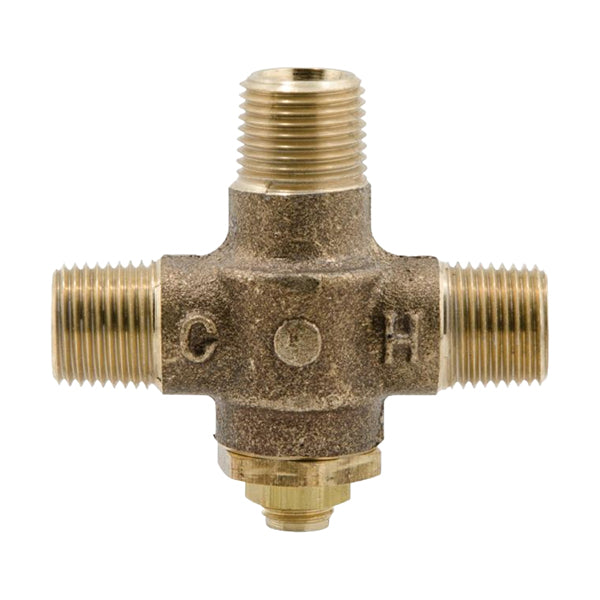

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This lead free hydro-guard under the counter combination tempering valve for low flow control is designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. It features a rough bronze finish, 1/2 in NPT connections, corrosion resistant internal components, integral checks to prevent cross flow and inlet screens to filter out debris. The temperature adjustment stem is simple to adjust and has a locking nut to prevent unauthorized or accidental adjustment. Factory temperature is set at 105 deg F.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 1/2 in
- Fitting Size (in) 1/2 in
- Inlet Diameter (in) 1/2 in
- Outlet Diameter (in) 1/2 in
- Valve Size (in) 1/2 in
Characteristics and Features
- Plumbing Connection Type MIP
- Manufacturer Warranty Refer Brand Website for Warranty
Number Of
- Quantity (Count) 1
Material
- Material Brass
Performance Capacity
- Flow Rate (gpm) 0.5 gpm
- Pressure Rating (PSI) 125 PSI
- Temperature Rating (deg) 180 deg
Certification & Compliance
- ANSI Certified (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) Yes
- Low Lead Compliant (Yes/No) Yes
Operation Detail
- Body Pattern 3-Way
