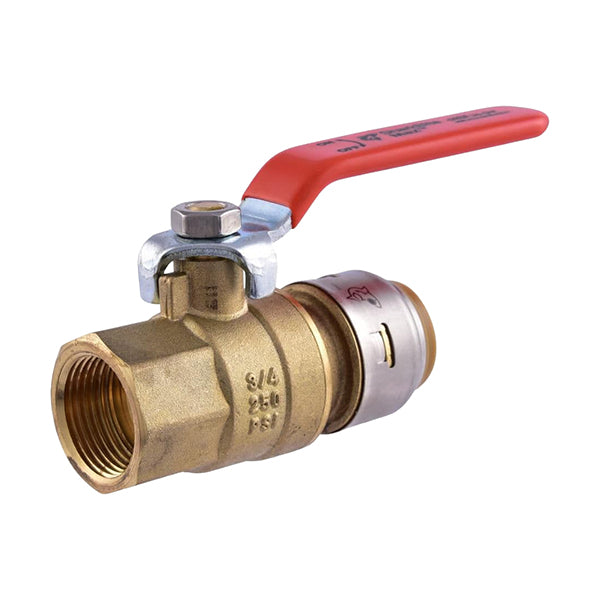

3/4 in Brass Push-to-Connect x FIP Ball Valve
3/4 in Brass Push-to-Connect x FIP Ball Valve
PDIPN:
90602
Key Features
Regular price
$42.40
Sale price
$42.40
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for efficient water flow control, this full port ball valve features a push-fit connection on1 side and a female iron pipe thread on the other. The valve is rated for pressures up to 250 psi and temperatures reaching 200 degrees, ensuring robust performance in residential plumbing systems. A quarter turn lever handle allows for rapid shut-off, while the re-engineered body design minimizes the force required for pipe insertion. The integrated stainless steel collet retainer provides structural integrity for secure, watertight connections without the need for soldering, glue, or clamps. This valve is fully reusable with a disconnect tool and is backed by a 25-year manufacturer warranty for long-term maintenance confidence.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 5 in
- Thread Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
- Pressure Rating (PSI) 250 PSI
- Temperature Rating (deg) 200 deg
Characteristics and Features
- Port Type Full Port
- Plumbing Connection Type Push-Fit
- Valve Handle Type Locking
Number Of
- Number of Handles 1
- Quantity (Count) 1
Material
- Material Brass
