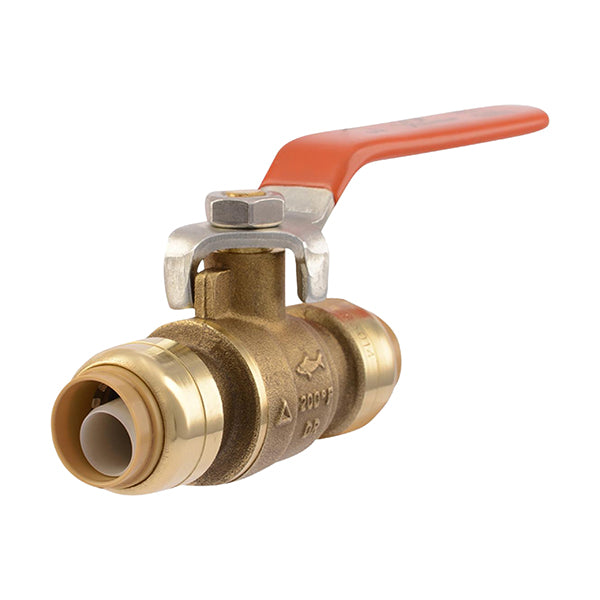

Push Ball Valve, Standard Port Lever Handle
Push Ball Valve, Standard Port Lever Handle
PDIPN:
24812
Key Features
Regular price
$206.80
Sale price
$206.80
Regular price
Overview
Overview
This standard port ball valve utilizes a quick connect interface to regulate water flow in residential and commercial plumbing systems. Engineered for versatility, the valve supports a maximum pressure rating of 200 psi and operates at temperatures up to 200 degrees. The integrated lever handle allows for quarter-turn shut-off control during maintenance or emergency repairs. Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE piping, this component facilitates installation in wet lines without the requirement for soldering, clamps, glue, or unions. The rotatable body design ensures access in confined plumbing configurations, providing a secure connection for various water supply applications.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 1-1/2 in
- Water Connection Size (in) 2 in
- Pressure Rating (PSI) 200 PSI
- Temperature Rating (deg) 200 deg
Characteristics and Features
- Port Type Standard Port
- Plumbing Connection Type Quick Connect
- Valve Handle Type Lever
Number Of
- Number of Handles 1
- Quantity (Count) 1
Material
- Material Brass
