SC6962313XF SC WASH MACH BOX PEX W/ARREST
SC6962313XF SC WASH MACH BOX PEX W/ARREST
PDIPN:
7255
Key Features
Regular price
$56.30
Sale price
$56.30
Regular price
Shipping calculated at checkout.
Overview
Overview

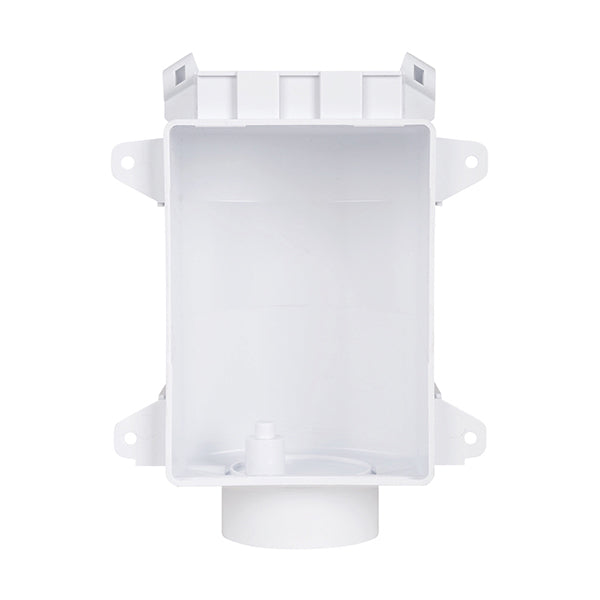

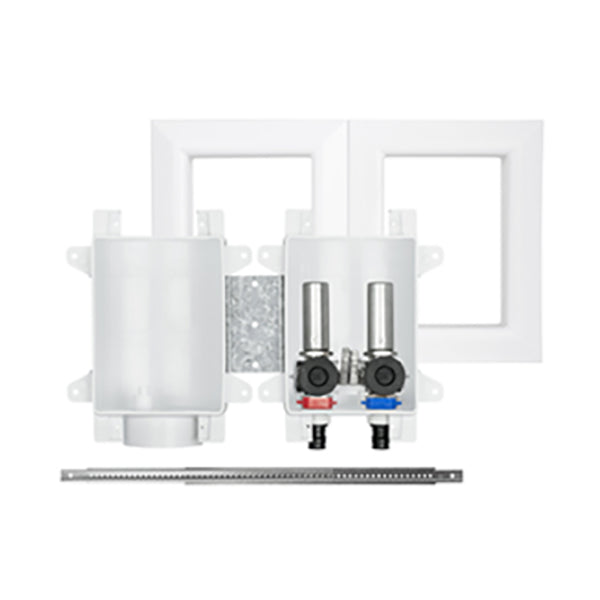

The Sioux Chief OxBox Washing Machine Outlet Box is designed for recessed laundry plumbing installations in residential or commercial applications. Constructed from durable ABS, the OxBox system separates supply and drainage boxes to allow flexible placement within wall stud bays. The unit includes two quarter-turn ball valves with integrated MiniRester water hammer arresters that help reduce pipe noise and protect plumbing systems from pressure shock. It features 1/2 in. PEX F1807 crimp inlet connections and 3/4 in. male hose-thread outlets for washing machine hoses. The box mounts securely on-stud or between studs using the included galvanized bracket, and debris covers protect components during rough-in.
Specifications
Specifications
Dimensions and Measurements
- Inlet Pipe Size (in) 1/2 in
Characteristics and Features
- Plumbing Connection Type MIP
- Manufacturer Warranty Refer warranty as per manufacturer website
Number Of
- Quantity (Count) 1
Material
- Material ABS, Brass, Galvanized Steel
Performance Capacity
- Temperature Rating (deg) 200 deg F
Certification & Compliance
- ASME Certified (Yes/No) No
- NSF Certified (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) Yes
- Low Lead Compliant (Yes/No) No
Compatibility
- Compatible Pipe Material ABS
