SC696G1010MF SC ICE MAKER BOX COP W/ARR LF
SC696G1010MF SC ICE MAKER BOX COP W/ARR LF
PDIPN:
5032
Key Features
Regular price
$47.31
Sale price
$47.31
Regular price
Shipping calculated at checkout.
Overview
Overview

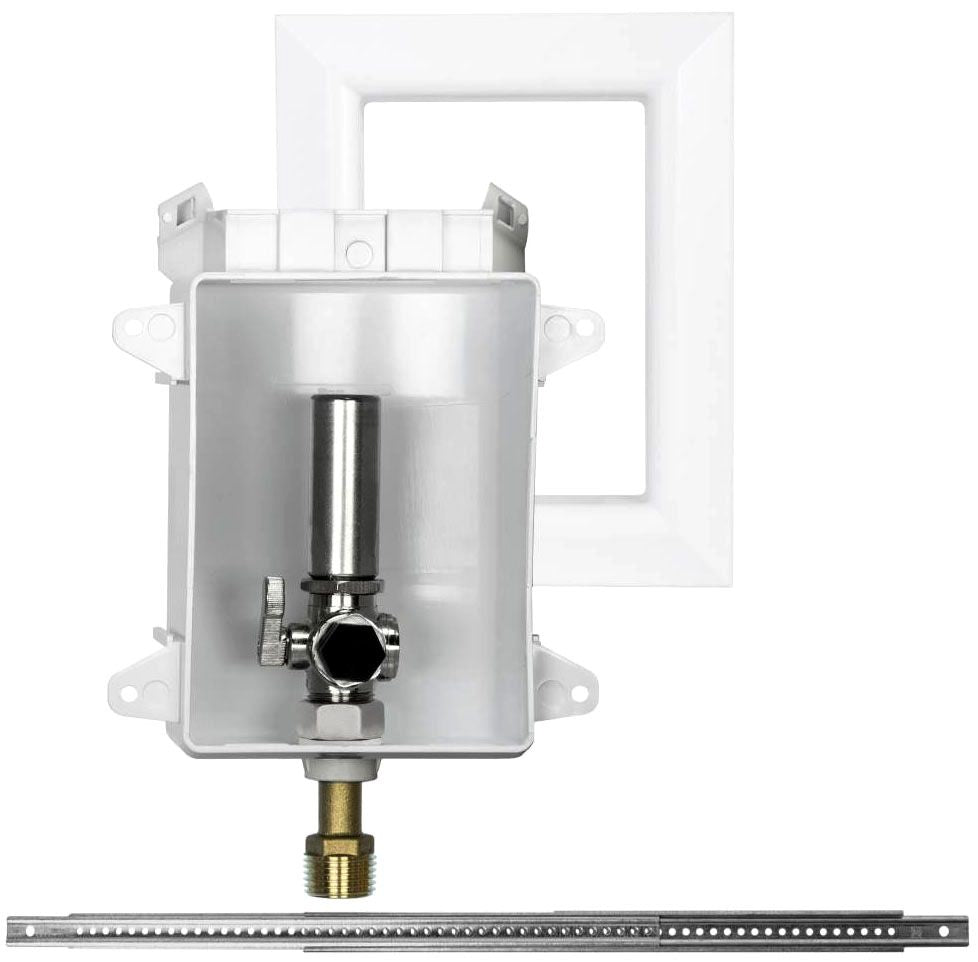

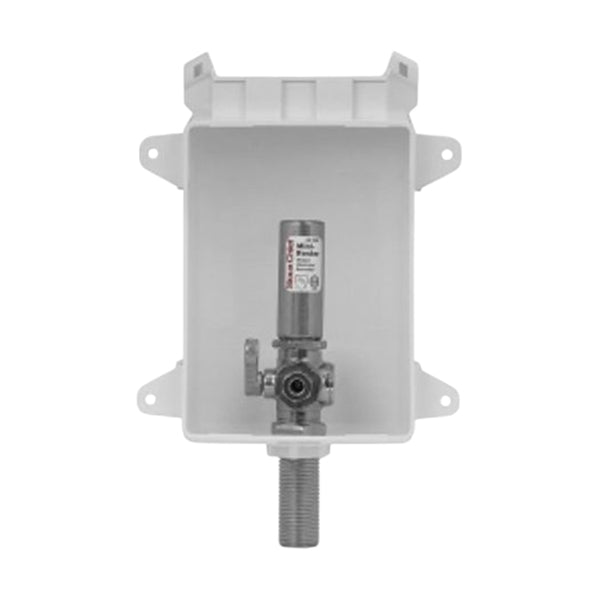

This ice maker outlet box with water hammer arrester is used in plumbing systems where a recessed water supply is required. The box and frame are constructed from durable ABS and feature a steel bracket for secure mounting to or between studs. It allows for supply lines to be installed from above or below. The unit includes a lead-free, quarter-turn ball valve with a 1/2 in male iron pipe and female sweat connection and a 1/4 in OD compression outlet. A debris cover is included to protect the valve from paint and drywall mud during construction. The integrated water hammer arrester helps reduce pressure spikes and noise in the plumbing system.
Specifications
Specifications
Dimensions and Measurements
- Diameter (in) 1/2 in
- Drain Connection Size (in) 1/2 in
- Inlet Pipe Size (in) 1/2 in
- Water Connection Size (in) 1/2 in
- Interior Depth (in) 3-1/2 in
Characteristics and Features
- Appliance Supply Box Type Ice Maker Box
- Plumbing Connection Type MIP
- Manufacturer Warranty Limited Lifetime Warranty
Number Of
- Quantity (Count) 1
Material
- Material ABS, Brass, Stainless Steel
Certification & Compliance
- ASME Certified (Yes/No) Yes
- NSF Certified (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) Yes
- Low Lead Compliant (Yes/No) Yes
Compatibility
- Compatible Pipe Material Copper
