SIOUX CHIEF 696RG1000XF LF ICMKR OLET BOX
SIOUX CHIEF 696RG1000XF LF ICMKR OLET BOX
PDIPN:
287761
Key Features
Regular price
$73.80
Sale price
$73.80
Regular price
Overview
Overview

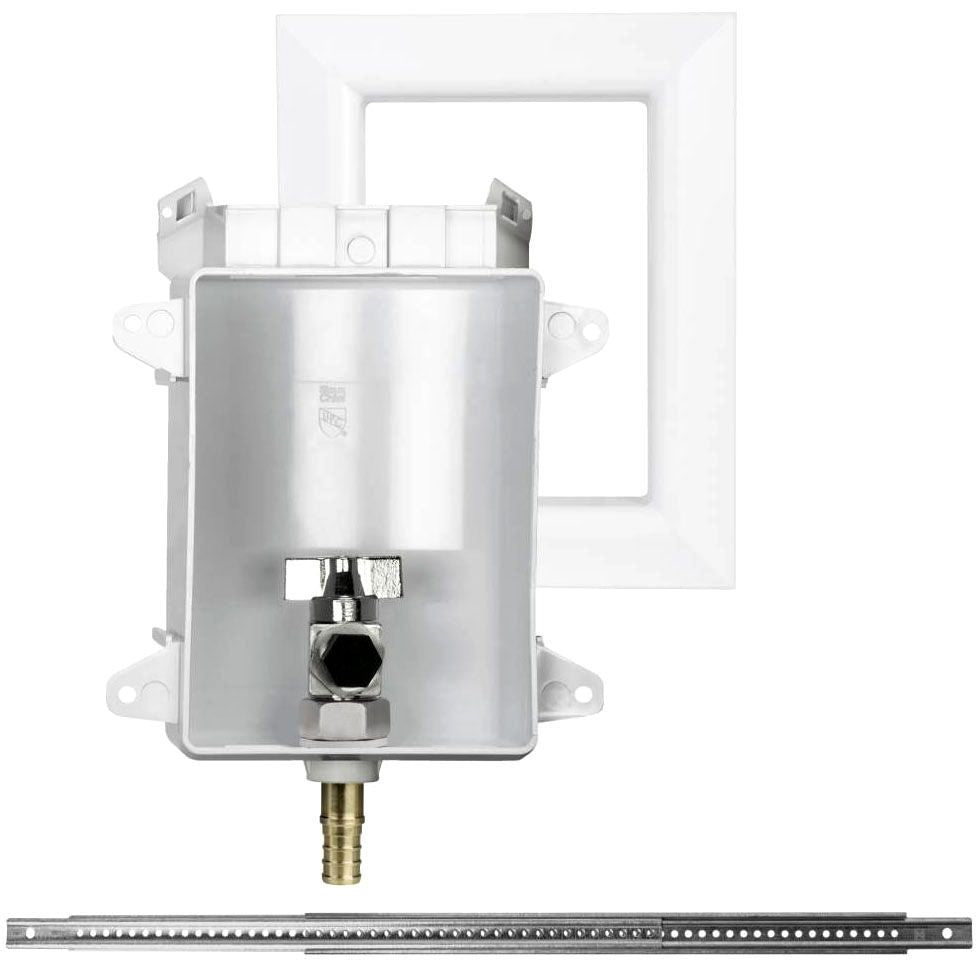

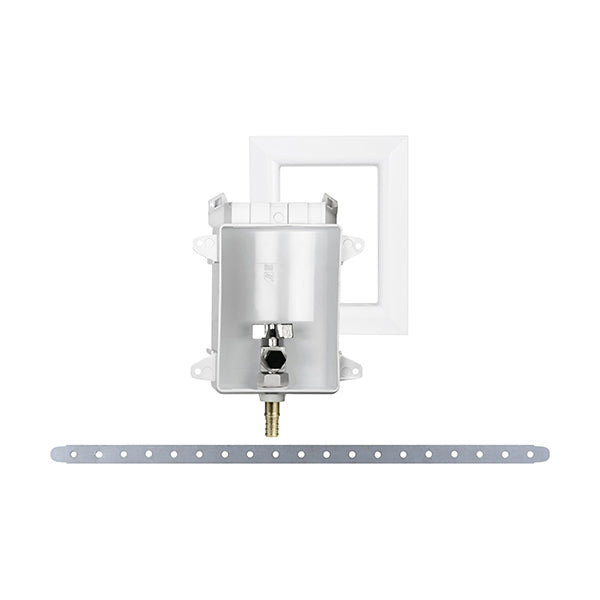

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This fire-rated ice maker outlet box is designed to provide a recessed point of connection for refrigerator ice machines. It features a high-quality brass valve with a 1/2 in crimp PEX inlet and a 1/4 in compression outlet for a secure fit. The durable ABS box and frame ensure compliance with safety standards and provide a clean professional appearance. This unit includes a galvanized steel bracket and a debris cover for protection during construction. The quarter-turn ball valve allows for easy water shut-off and is lead-free for safe potable water use.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 1/2 x 1/4 in
- Inlet Pipe Size (in) 1/2 in
- Interior Depth (in) 3-1/2 in
- Water Connection Size (in) 1/2 x 1/4 in
Characteristics and Features
- Appliance Supply Box Type Ice Maker Box
- Plumbing Connection Type Barbed
Number Of
- Quantity (Count) 1
Material
- Material ABS, Brass, Stainless Steel
Certification & Compliance
- ASME Certified (Yes/No) Yes
- Low Lead Compliant (Yes/No) Yes
- NSF Certified (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) Yes
Compatibility
- Compatible Pipe Material PEX
