Overview
Overview

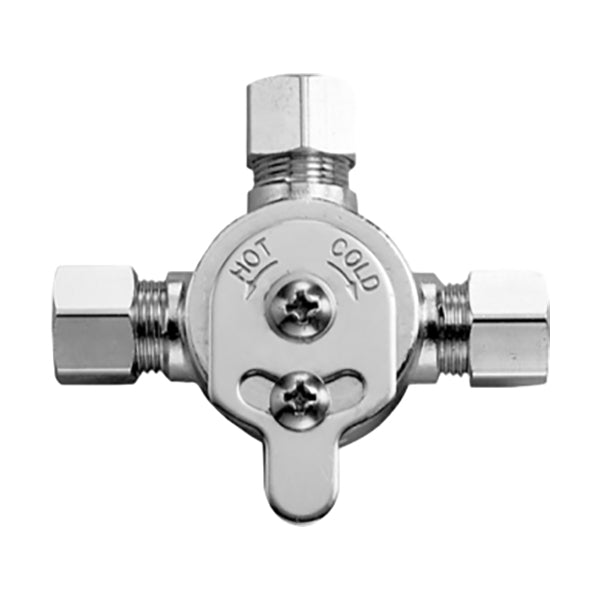

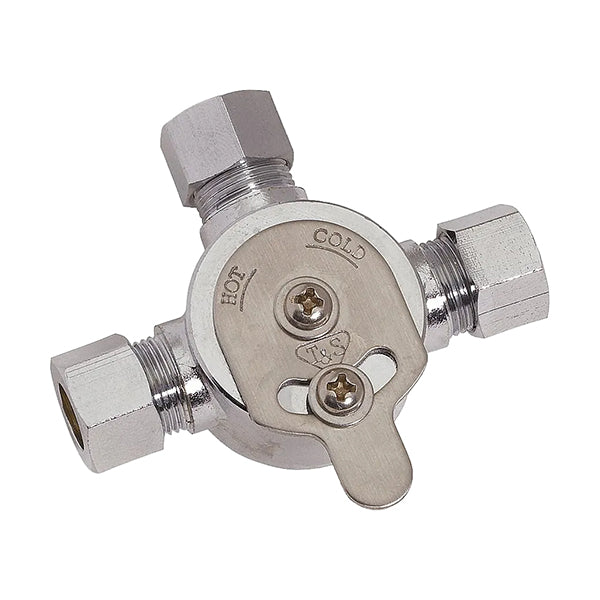

The below-deck mechanical mixing valve is designed to provide controlled water temperature for compatible electronic faucets. Installed beneath the lavatory, it replaces the tee fitting supplied with the faucet and allows convenient hot-and-cold adjustment through a lever dial with lock screw. Durable chrome-plated brass construction ensures reliable performance and corrosion resistance in commercial restroom environments. Integral check valves help prevent backflow, while 3/8 in compression connections enable secure and straightforward installation. This valve helps maintain consistent mixed water delivery for dependable faucet operation.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 2-13/16 in
- Fitting Size (in) 3/8 in
- Inlet Diameter (in) 3/8 in
- Outlet Diameter (in) 3/8 in
- Thread Size (in) 3/8 in
- Valve Size (in) 3/8 in
Characteristics and Features
- Plumbing Connection Type Compression
Number Of
- Quantity (Count) 1
Material
- Material Brass
Performance Capacity
- Pressure Rating (PSI) 70 PSI
- Temperature Rating (deg) 120 deg
Certification & Compliance
- ANSI Certified (Yes/No) No
- Low Lead Compliant (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) No
Operation Detail
- Body Pattern 3-Way
