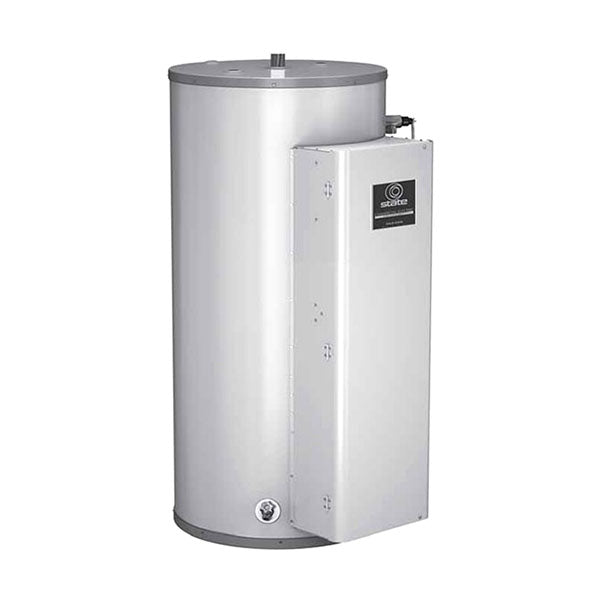

STATE CSB-82-15-SFE (100121627) 80GAL TALL COMMERCIAL ELECTRIC W/H 480V/15KW/3P
STATE CSB-82-15-SFE (100121627) 80GAL TALL COMMERCIAL ELECTRIC W/H 480V/15KW/3P
PDIPN:
314954
Key Features
Regular price
$10,396.20
Sale price
$10,396.20
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This commercial electric water heater is designed for use as a recovery heater having its own storage tank. It features a glass-lined tank coated with glass specially developed for water heater use to provide protection against corrosion. The unit includes industrial-grade low-watt density incoloy immersion elements with Ni-chrome resistance wire for long life. It meets the standby loss requirements of the U.S. Department of Energy and ASHRAE/IES 90.1 standards. Added safety features include internal fusing to protect elements and thermostats against excess current flow and two anode rods for maximum corrosion protection. A factory-installed terminal block allows for easy installation by bringing service directly to the block.
Specifications
Specifications
Dimensions and Measurements
- Diameter (in) 25-1/2 in
- Overall Height (in) 60-1/4 in
- Water Connection Size (in) 1-1/4 in
Characteristics and Features
- Plumbing Connection Type NPT
- Water Heater Type Electric Tank
- Manufacturer Warranty Refer manufacturer website for warranty
Material
- Material Steel, Glass
Performance Capacity
- Recovery Rate (gph) 61 gph
- BTU Rating (BTU/hr) 51,195 BTU/hr
Electrical Information
- Voltage (V) 208 V, 240 V, 277 V, 480 V
- Wattage (W) 15000 W
Compatibility
- Commercial/Residential Commercial
Location
- Indoor/Outdoor Indoor
