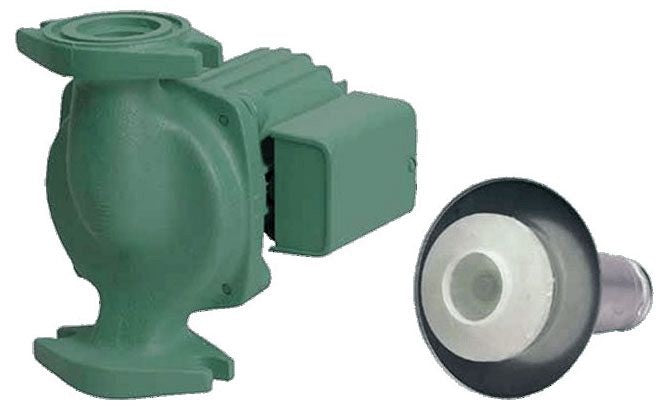

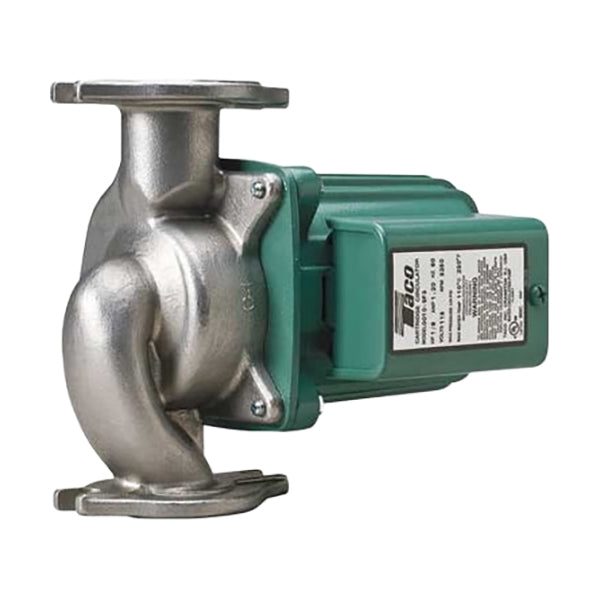

0014 Series 32 GPM Potable Circulating Pump Flanged
0014 Series 32 GPM Potable Circulating Pump Flanged
PDIPN:
52904
Key Features
Regular price
$1,263.00
Sale price
$1,263.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. The potable Circulating Pump with flanged connections is designed for reliable water circulation in domestic hot water and potable water systems. Built from corrosion-resistant materials, it ensures safe operation in applications requiring clean, sanitary water. The flanged design allows for secure, stable installation and easy maintenance in residential and commercial systems.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
- Water Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
Characteristics and Features
- Manufacturer Warranty 3 Years
Number Of
- Number of Speeds 1
Material
- Material Stainless Steel
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 32 gpm
- Head Range (ft) 22 ft
- Horsepower (HP) 1/8 hp
- Temperature Rating (deg) 230 deg F Fluid
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 1.45 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 93.21 W
