29 GPM Circulator with Integral Flow Check
29 GPM Circulator with Integral Flow Check
PDIPN:
88085
Key Features
Regular price
$1,246.00
Sale price
$1,246.00
Regular price
Overview
Overview

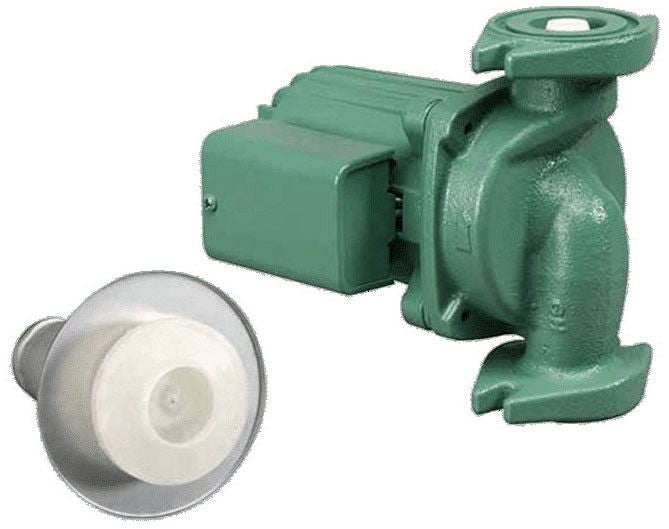

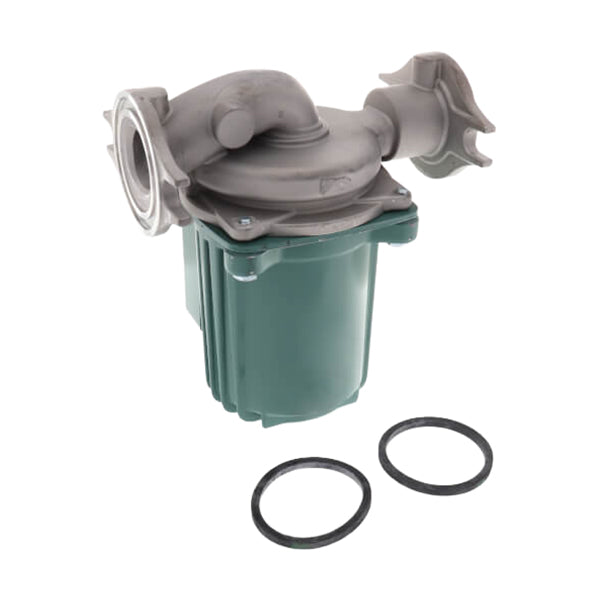

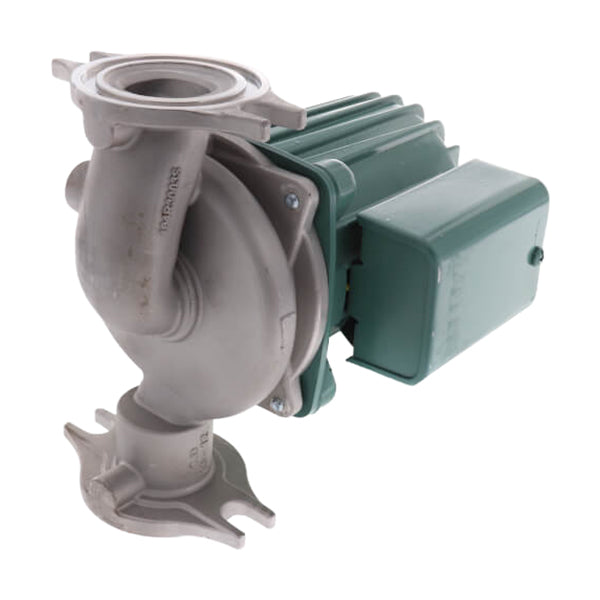

SPECIAL ORDER ITEM. Review Returns Policy before purchase. The stainless steel Circulator Pump with integral flow check is designed for efficient water circulation in hydronic heating and domestic hot water systems. Powered by a 1/8 HP motor, it delivers reliable performance for residential and light commercial applications. Its durable stainless steel construction offers excellent corrosion resistance, making it suitable for potable water use.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 3/4 to 1-1/2 in
- Water Connection Size (in) 3/4 to 1-1/2 in
Characteristics and Features
- Manufacturer Warranty Refer warranty as per manufacturer website
Number Of
- Number of Speeds 1
Material
- Material Stainless Steel
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 29 gpm
- Head Range (ft) 23 ft
- Horsepower (HP) 1/8 hp
- Temperature Rating (deg) 40 to 230 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 1.55 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 93.21 W
