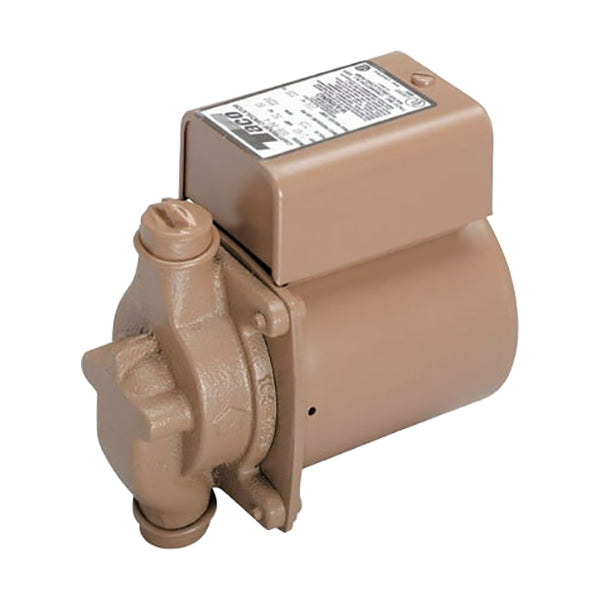

7 GPM Circulator Pump
7 GPM Circulator Pump
PDIPN:
59117
Key Features
Regular price
$595.00
Sale price
$595.00
Regular price
Overview
Overview

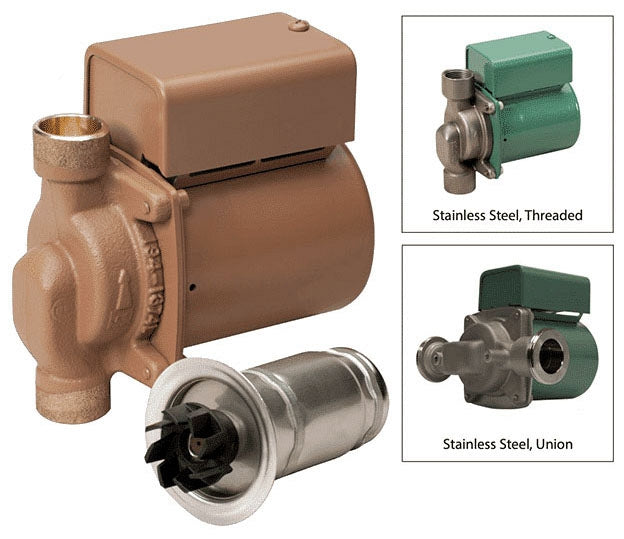

SPECIAL ORDER ITEM. Review Returns Policy before purchase. Designed for circulating hot or chilled fresh water in open or closed loop, lower flow applications. Flow characteristics are ideal for Domestic HotWater Recirculation, Heat Recovery units,Water Source Heat Pumps, and PotableWater systems. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 1/2 in
- Water Connection Size (in) 1/2 in
Characteristics and Features
- Plumbing Connection Type Sweat
- Manufacturer Warranty 3 Years
Number Of
- Number of Speeds 1
Material
- Material Bronze
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 7 gpm
- Head Range (ft) 4.5 ft
- Horsepower (HP) 1/40 hp
- Temperature Rating (deg) 40 to 220 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 0.45 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 18.64 W
