10 GPM Cartridge Circulator Pump
10 GPM Cartridge Circulator Pump
PDIPN:
56161
Key Features
Regular price
$595.00
Sale price
$595.00
Regular price
Overview
Overview

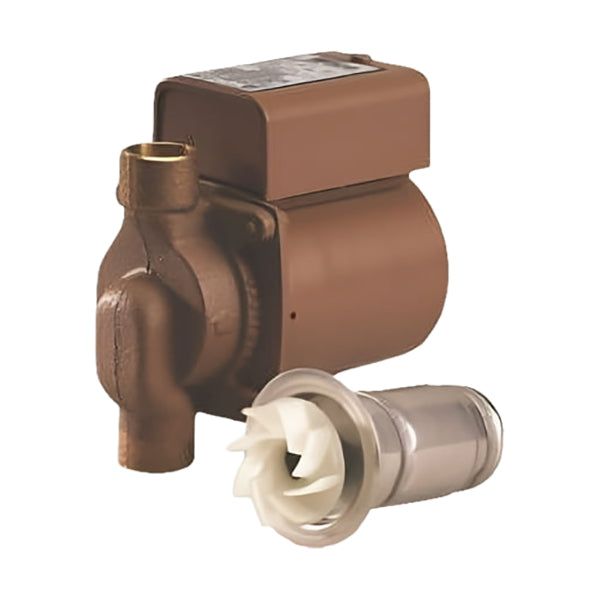

SPECIAL ORDER ITEM. Review Returns Policy before purchase. A Cartridge Circulator is designed for efficient water circulation in residential and light commercial hydronic heating and hot water systems. It features a unique, replaceable cartridge that contains all moving parts, allowing for quick and easy maintenance without replacing the entire pump. Its compact, direct-drive design ensures quiet operation, low energy consumption, and reliable performance.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
Characteristics and Features
- Plumbing Connection Type Sweat
- Manufacturer Warranty 3 Years
Number Of
- Number of Speeds 1
Material
- Material Bronze
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 10 gpm
- Head Range (ft) 9 ft
- Horsepower (HP) 1/40 hp
- Temperature Rating (deg) 220 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 0.52 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 18.64 W
