007 Series 23 GPM 115V Comfort Solutions Green Electric Portable Circular Pump
007 Series 23 GPM 115V Comfort Solutions Green Electric Portable Circular Pump
PDIPN:
35612
Key Features
Regular price
$852.00
Sale price
$852.00
Regular price
Overview
Overview

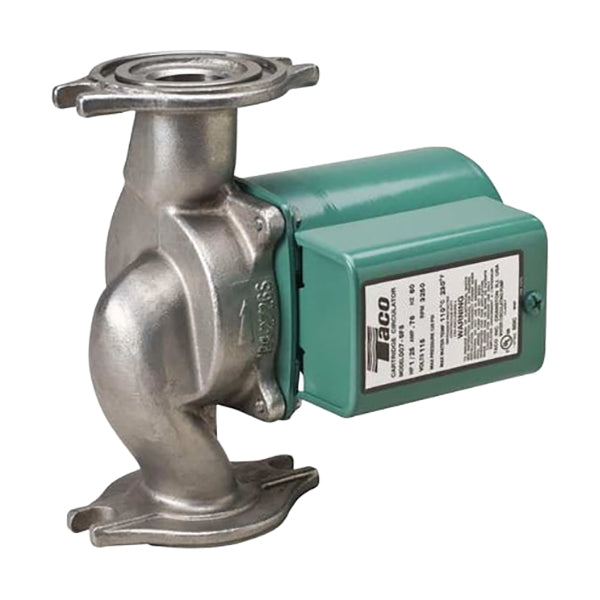

Circulator Pump is one of the most popular hydronic circulators sold today. Features a field serviceable cartridge design and provides a quiet, efficient operation and unmatched reliability. It has a self-lubricating, maintenance free design and it's flow parameters make it an ideal circulator for a wide range of open and closed loop hydronic heating, radiant heating, solar heating and many other applications.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 1 in, 1-1/2 in, 1-1/4 in, 3/4 in
- Water Connection Size (in) 1 in, 1-1/2 in, 1-1/4 in, 3/4 in
Characteristics and Features
- Manufacturer Warranty Refer warranty as per manufacturer website
Number Of
- Number of Speeds 1
Material
- Material Stainless Steel
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 23 gpm
- Head Range (ft) 10 ft
- Horsepower (HP) 1/25 hp
- Temperature Rating (deg) 230 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 0.75 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 29.82 W
