14 GPM Potable Circulating Pump Flanged
14 GPM Potable Circulating Pump Flanged
PDIPN:
9639
Key Features
Regular price
$899.00
Sale price
$899.00
Regular price
Overview
Overview

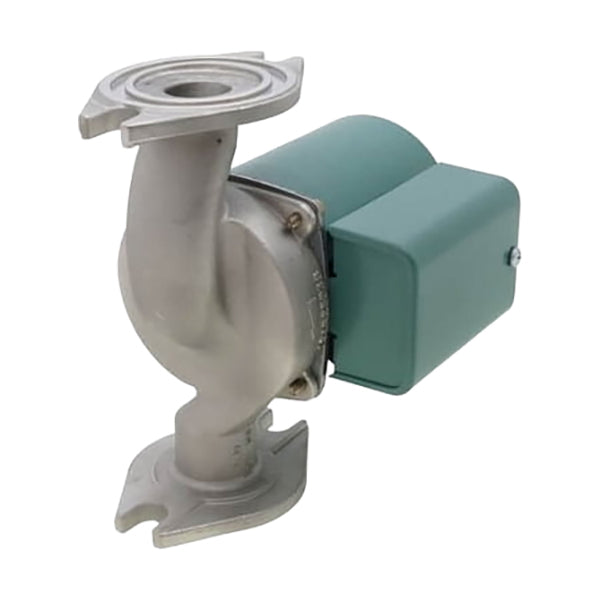

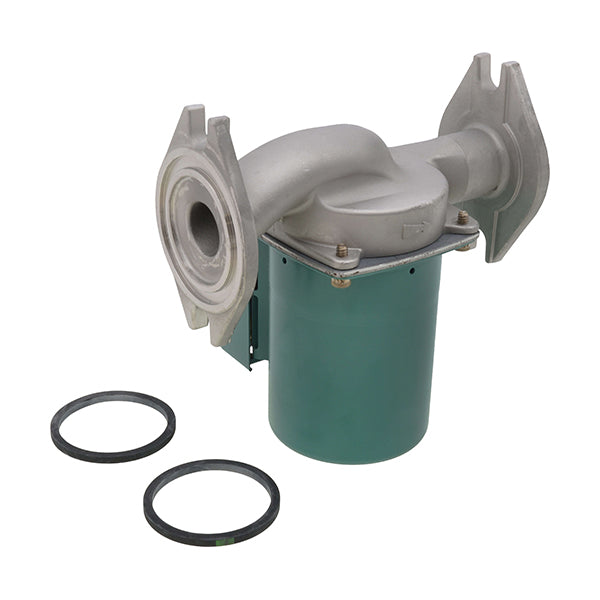

The potable Circulating Pump with flanged connections is designed for efficient water movement in domestic hot water and potable water systems. Constructed from corrosion-resistant materials such as stainless steel or bronze, it ensures safe and hygienic operation. The flanged design provides secure installation and simplifies maintenance in residential and commercial setups.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
- Water Connection Size (in) 3/4, 1, 1-1/4, 1-1/2 in
Characteristics and Features
- Manufacturer Warranty 3 Years
Number Of
- Number of Speeds 1
Material
- Material Stainless Steel
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 14 gpm
- Head Range (ft) 16 ft
- Horsepower (HP) 1/25 hp
- Temperature Rating (deg) 230 deg F Fluid
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 0.84 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 29.82 W
