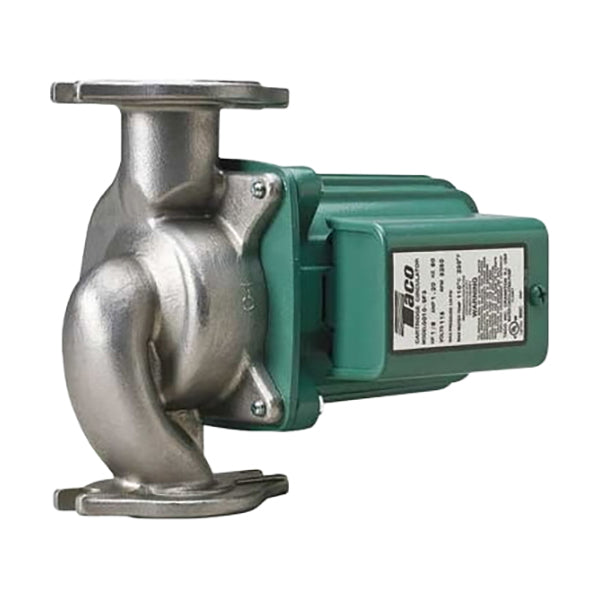

10 GPM Potable Circulating Pump Flanged
10 GPM Potable Circulating Pump Flanged
PDIPN:
19913
Key Features
Regular price
$1,093.00
Sale price
$1,093.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. The High Velocity Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head/lower-flow water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head /lower-flow heat recovery, open-loop solar heating and light commercial/domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 1, 1-1/2, 1-1/4, 3/4 in
- Water Connection Size (in) 1, 1-1/2, 1-1/4, 3/4 in
Characteristics and Features
- Manufacturer Warranty 3 Years
Number Of
- Number of Speeds 1
Material
- Material Stainless Steel
Yes/No Features
- Valve Included (Yes/No) No
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 10 gpm
- Head Range (ft) 35 ft
- Horsepower (HP) 1/8 hp
- Temperature Rating (deg) 230 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 1.4 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 93.21 W
