006 Series 0 - 19 GPM Circulating Pump
006 Series 0 - 19 GPM Circulating Pump
PDIPN:
140255
Key Features
Regular price
$504.00
Sale price
$504.00
Regular price
Overview
Overview

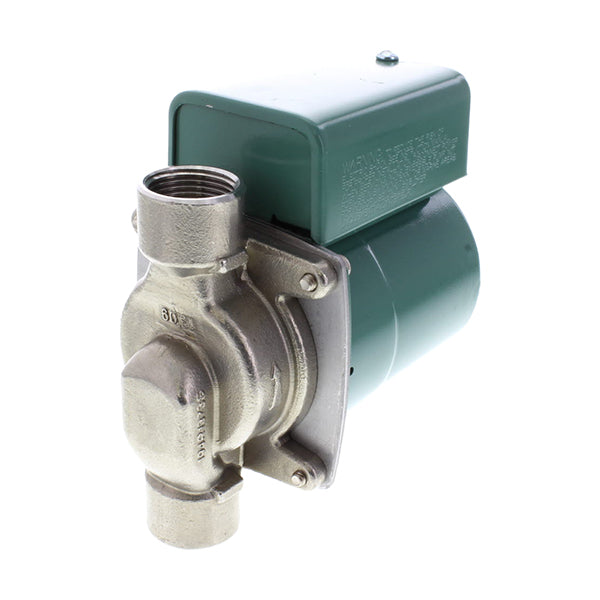

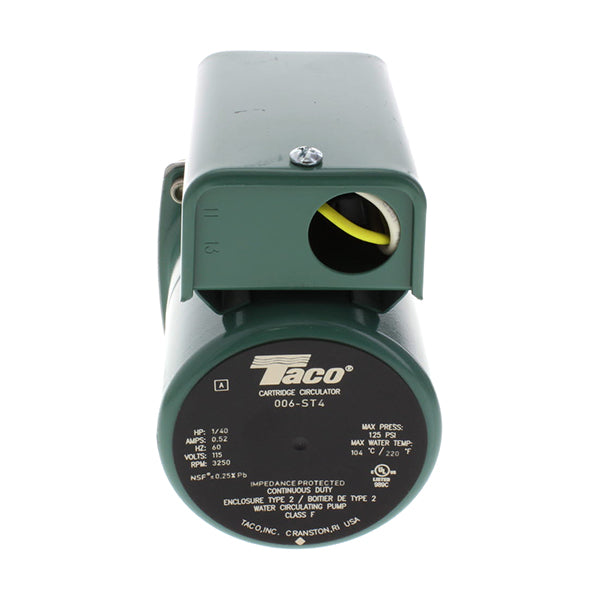

SPECIAL ORDER ITEM. Review Returns Policy before purchase. Part of the 006 Series Collection, this cartridge circulator is designed for hydronic heating and hot water recirculation systems. The compact, direct-drive design supports quiet and efficient operation in residential and light commercial applications. The field-replaceable cartridge contains all moving components, allowing quick servicing and reduced maintenance downtime. The self-lubricating design eliminates the need for mechanical seals, supporting long-term reliability. Optional integral flow check helps prevent reverse flow and improves system performance. Designed for continuous operation, it supports consistent water circulation and efficient system performance.
Specifications
Specifications
Dimensions and Measurements
- Drain Connection Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
Characteristics and Features
- Plumbing Connection Type NPT
- Manufacturer Warranty 3 Years
Material
- Material Stainless Steel
Performance Capacity
- Speed Rating (rpm) 3250 rpm
- Flow Rate (gpm) 19 gpm
- Head Range (ft) 0 - 9.5 ft
- Horsepower (HP) 1/40 hp
- Temperature Rating (deg) 220 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 0.52 A
- Voltage (V) 115V
Operation Detail
- Power Rating (W) 18.64 W
