FQ Recessed series 17-3/8 in x 17-3/8 in Frame-In Trimmed, White
FQ Recessed series 17-3/8 in x 17-3/8 in Frame-In Trimmed, White
PDIPN:
196769
Key Features
Regular price
$107.95
Sale price
$107.95
Regular price
Overview
Overview

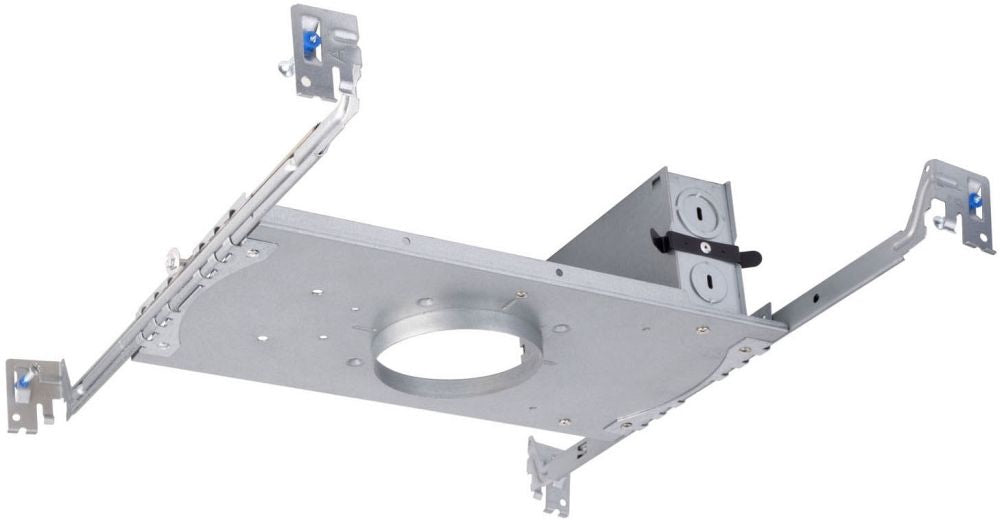

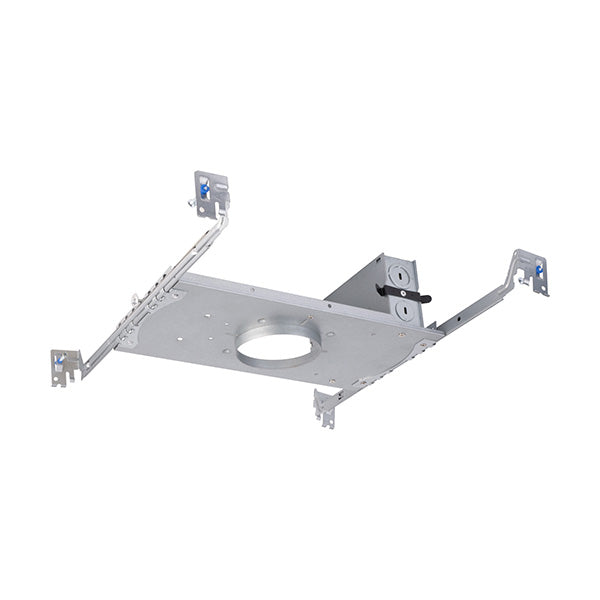

SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for new construction, this 2 in frame-in kit features an integrated 25W LED downlight system. The unit includes an integral emergency battery backup that provides 90 minutes of 6W illumination during power loss, complete with a 24 in lead wire remote test switch. Designed for hardwired installation, it operates on a universal 120-277V input. Dimming capabilities include ELV and TRIAC at 120V, or 0-10V at 277V. The housing requires a 3-1/2 in ceiling cutout and accommodates ceiling thicknesses from 1/2 in to 1 in. ETL, UL, and CSA certified for safety, this damp-rated fixture is RoHS compliant and offers a 50,000-hour rated life. Dimensions measure 17-3/8 in L x 17-3/8 in W x 3-7/8 in H.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 17-3/8 in
- Overall Width (in) 17-3/8 in
- Overall Height (in) 3-7/8 in
- Overall Depth (in) 10 in
- Trim Size (in) 2 in
- Rated Life Hours 50,000 hours
- Lumens (lm) 800 lm
Characteristics and Features
- Bulb Base Type Integrated LED
- Shade Shape Type Round
Finish
- Color Rendering Index (CRI) 90 CRI
- Color Temperature (K) 3000 K
Number Of
- Number of Bulbs 1
Material
- Material Aluminium
- Shade Material Aluminium, Acrylic
