5-1/4 in x 5-1/4 in Remodel Housing Trimmed, Black
5-1/4 in x 5-1/4 in Remodel Housing Trimmed, Black
PDIPN:
236369
Key Features
Regular price
$116.95
Sale price
$116.95
Regular price
Overview
Overview

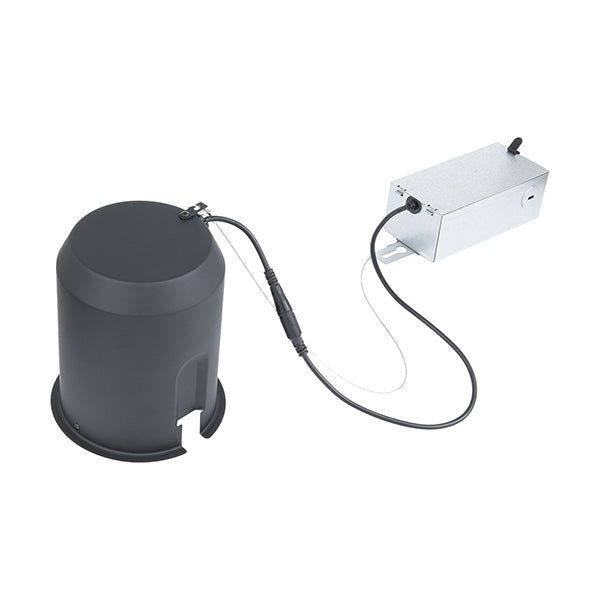

SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for 4 in recessed downlight applications, this remodel housing supports 13W LED modules in residential or commercial settings. The unit features a 120-277V input range and is IC rated for direct contact with insulation. Designed for hardwired installation, the housing measures 5-1/4 in W by 5-3/4 in H. It is ETL, UL, and CSA certified to meet North American safety standards and is RoHS compliant. The damp rated construction allows for installation in bathrooms and covered outdoor areas. This housing includes a die-cast spackle flange for a clean ceiling plane finish and utilizes 20-gauge galvanized sheet metal for structural support. A 5-year manufacturer warranty is included with this unit.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 5-1/4 in
- Overall Width (in) 5-1/4 in
- Overall Height (in) 5-3/4 in
- Overall Depth (in) 5-1/4 in
- Beam Angle (deg) 60 deg
- Trim Size (in) 4 in
Characteristics and Features
- Bulb Base Type Integrated LED
- Shade Shape Type Round
Finish
- Color/Finish Whites
- Color Rendering Index (CRI) 90 CRI
- Color Temperature (K) 3000 K
Number Of
- Number of Bulbs 1
Material
- Material Aluminium
- Shade Material Aluminium, Acrylic
Yes/No Features
- Bulbs Included (Yes/No) Yes
Performance Capacity
- Rated Life Hours 50,000 hours
- Lumens (lm) 950 lm
Electrical Information
- Power Source Hardwired
- Voltage (V) 120-277 V
Certification & Compliance
- CSA Certified (Yes/No) Yes
- Energy Star Certified (Yes/No) No
- ETL Compliant (Yes/No) Yes
- RoHS Compliant (Yes/No) Yes
- UL Compliant (Yes/No) Yes
- Location Rating Damp Rated
Style
- Design Style Modern
- Trim Style Reflector
