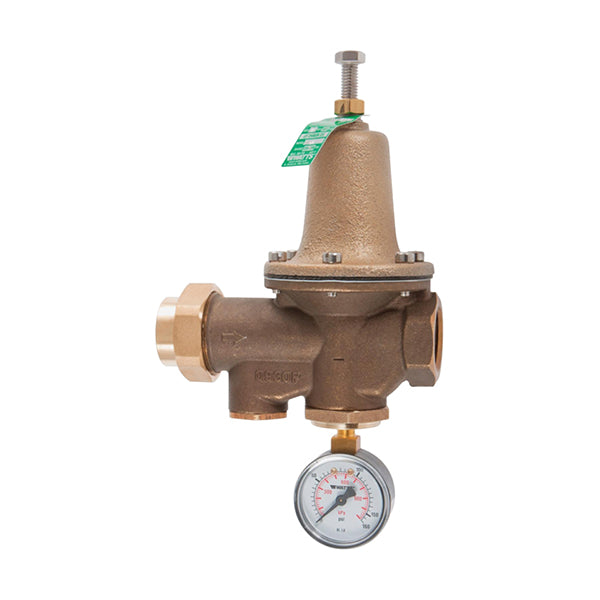

LF25AUB-Z3 Series Pressure Reducing Valve Gauge Tapping, Brass
WA34LF25AUBDUGZ WATTS 3/4 PRV FNPTXFNPT W/GT LF
PDIPN:
19339
Key Features
Regular price
$906.00
Sale price
$906.00
Regular price
Shipping calculated at checkout.
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This water Pressure Reducing Valve is designed to lower incoming water pressure to a safe and manageable level, helping protect plumbing system components and reduce water consumption. It is suitable for supply pressures up to 300 psi and can be adjusted between 25–75 psi to meet system requirements. The LF25AUB-Z3 model features lead-free construction to comply with lead-free installation standards. The valve comes factory preset at 50 psi, and all internal parts are easily serviceable without removing the valve from the pipeline.
Specifications
Specifications
Dimensions and Measurements
- Fitting Size (in) 3/4 in
- Inlet Diameter (in) 3/4 in
- Outlet Diameter (in) 3/4 in
- Thread Size (in) 3/4 in
- Valve Size (in) 3/4 in
Characteristics and Features
- Plumbing Connection Type NPT
Number Of
- Quantity (Count) 1
Material
- Material Copper Silicon Alloy
Performance Capacity
- Pressure Rating (PSI) 300 PSI
- Temperature Rating (deg) 180 deg
Certification & Compliance
- ANSI Certified (Yes/No) Yes
- Low Lead Compliant (Yes/No) Yes
- UPC / IPC Compliant (Yes/No) Yes
Operation Detail
- Body Pattern Straight
